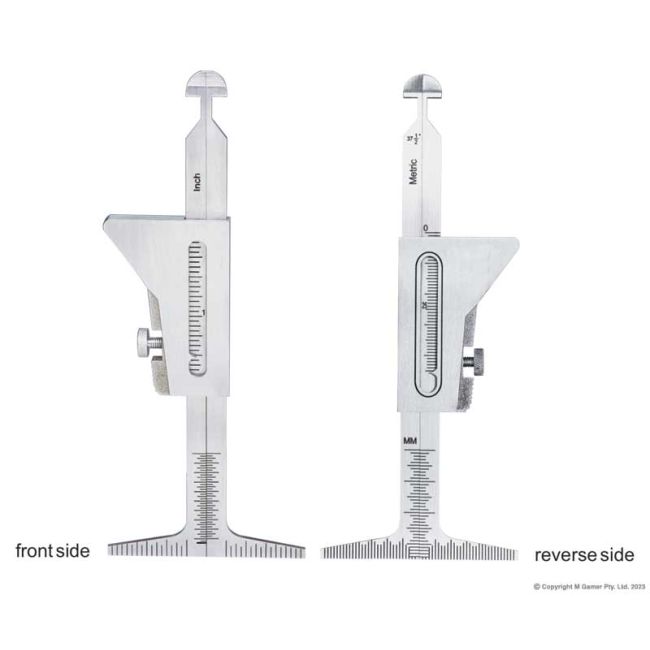

Features

• Made of stainless steel

Specifications

• Range: 37.5°, 0 - 45mm (0 – 1-3/4"), 0 - 35mm (0 – 1-3/8"), 1.6mm, 2.2mm, 0 - 35mm (0 – 1-3/8"), 0 - 60mm (0 – 2-3/8"), 0 - 30mm (0 – 1-1/4"), 0 - 35mm (0 – 1-3/8")
• Graduation: 1mm (1/16"), 1mm (1/32"), 1mm (1/32"), 1mm (1/32"), 1mm (1/16"), 1mm (1/16"), 1mm (1/32")
• Accuracy: ±1°, ±0.5mm, ±0.5mm, ±0.1mm, ±0.5mm, ±0.5mm, ±0.5mm, ±0.5mm

Application

• Measure bevel on end preparation
• Measure pipe wall thickness
• Measure internal misalignment
• Measure fit-up gap
• Measure crown height
• Measure distance between two marking lines of socket weld
• Measure fillet weld length
• Measure fillet weld height
