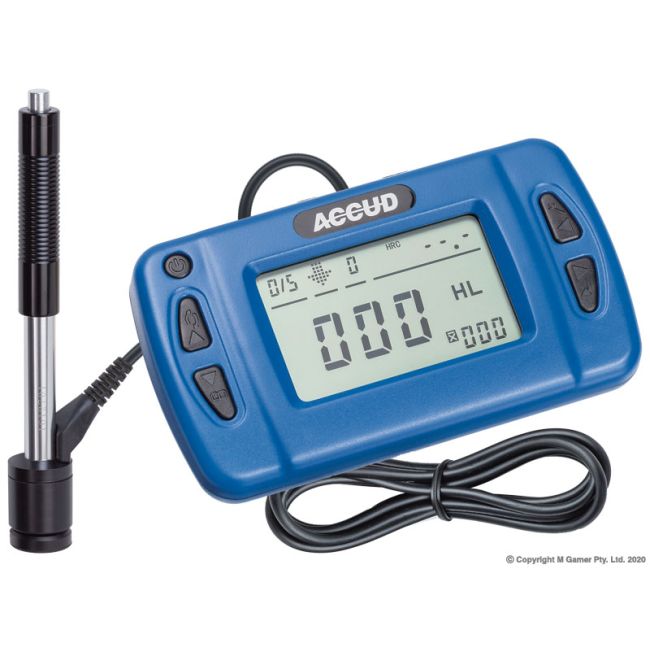

Features

• Measurement is based on the HL scale and also supports other hardness scales (HV, HB, HRC, HRB, HS) as well as tensile strength in MPa.
• An average value calculation function is included.
• Automatic power off helps conserve battery life when the unit is not in use.

Specifications

• Standard: ASTM A956-02
• Resolution: 1HLD, 1HV, 1HB, 0.1HRC, 0.1HRB, 1HS, 1MPa
• Accuracy: ±8HLD/0.8HRC(HLD=800)
• Min. Workpiece Weight: >5kg (directly), >2kg (on solid support), >0.1kg (coupled to solid support)
• Min. Workpiece Thickness: >5 mm
• Min. Workpiece Diameter: >22mm
• Max. Workpiece Surface Roughness: Ra<1.6µm
• Dimension: 150×67×29 mm
• Power Supply: 3xAAA batteries

Includes

• Test Block
• Small Support Ring
• Brush
• USB Cable
