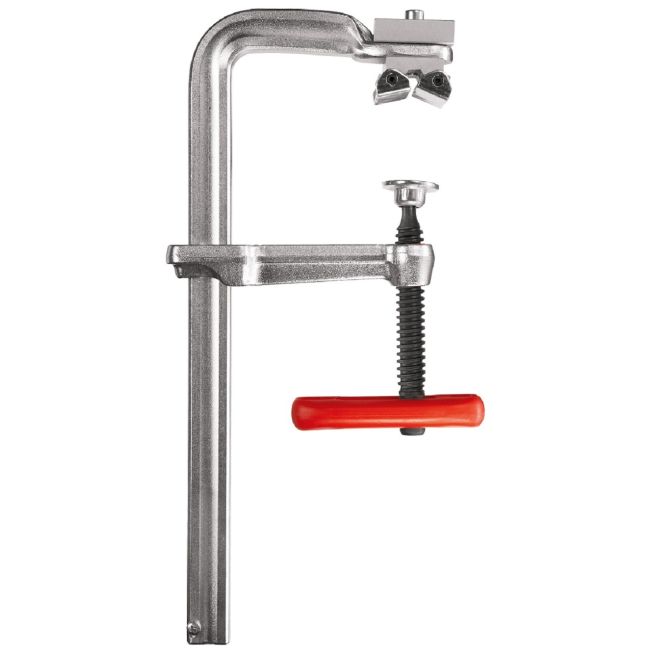

Features

• Clamping force up to 7,500 N
• Clamping and spreading of round, oval and angled workpieces
• Pressure plates can be replaced with no need for tools
• Multi-angle pad, The multi-angle pad is especially adapted to round, oval and angled workpieces - from 60 degrees inside to 60 degrees outside. For perfectly flat clamping remove the multi-angle pad. For spreading it is easy to reverse the position of the pad on the anvil of the clamp. Its like having 3 clamps in one.
• Removable end stop, The end stop can be removed - to allow the sliding arm to be quickly turned around for spreading.
• Pressure plate, For enhanced serviceability the pressure plate can be changed with no need for tools. It can be replaced very easily and quickly.
• Tommy bar with BESSEY grip, The addition of the plastic BESSEY grip means that clamping can also be very comfortable. The stable tommy bar has a plastic pad to ensure that it is easy to grip with your hand. This allows powerful, controlled clamping.

Specifications

• Opening - 300mm
• Throat Depth - 120mm
• Rail - 30 x 15mm
