Features

• Delivers up to 1,800 N (180 kg) of lifting force for professional and DIY assembly tasks
• One-handed operation lifts up to 8mm per pump lever stroke, lowers up to 4mm per lowering lever stroke, and aligns workpieces with millimetre precision
• Ergonomic layout places the 2-component plastic pump lever on top, with separate fine-lowering and release levers positioned below for safe, precise handling
• Closed plastic housing shields the mechanism from dust, dirt and chips while preventing fingers from getting trapped
• Tool-free conversion allows quick switching to clamping tasks
• Protective caps for the stand and lifting plate prevent damage to sensitive workpiece surfaces
• CE labelled

Specifications

• Lifting Force: Up to 180 kg
• Lifting/Spreading Range: 5mm-230mm
• Clamping Range: 170mm-390mm
• Rail Size: 22mm x 8mm
• Dimensions (L x H x W): 230mm x 175mm x 45mm
• Weight: 1.93 kg
• Warranty: 12 months, covered by Bessey

Includes

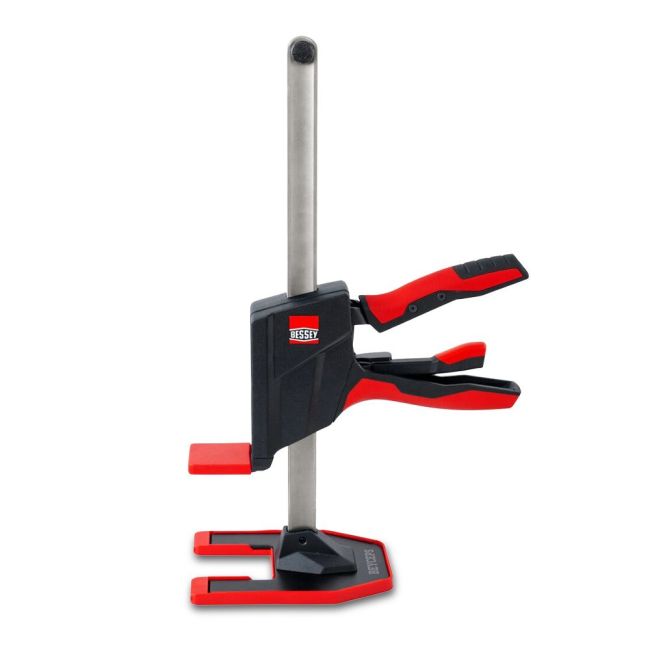

• 1x BEYCEPS One-Handed Lifting Clamp
• Protective caps for stand and lifting plate
