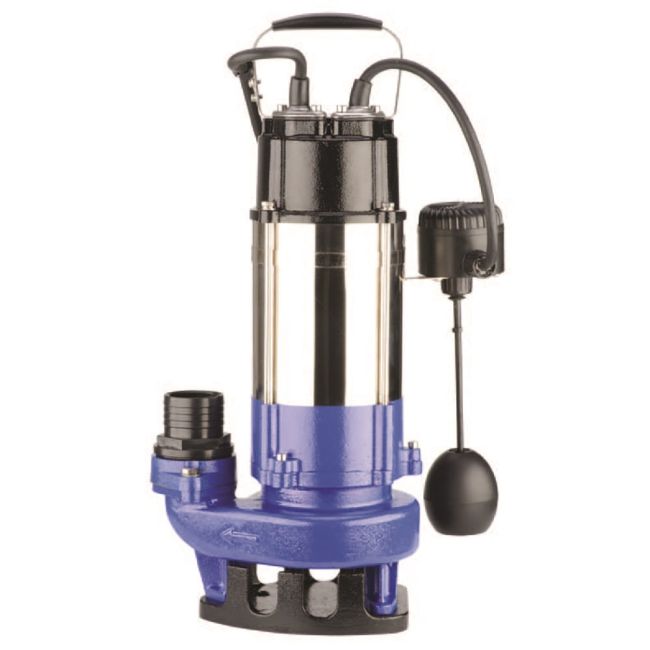

Bianco 200LPM 8.5M Submersible Vortex Pump B45VAS2-FIXEDFLOAT-VORTEX-PUMP

Features

• Rugged Vortex Drainage Pump: Designed for general drainage applications with clean or slightly dirty water.
• Heavy-Duty Cast Iron Impeller: Semi-vortex impeller allows free passage of particles up to 25mm.
• Compact Design: Fitted with a vertical fixed float for automatic operation in tight spaces.
• Ideal for Multiple Applications: Suitable for greywater pump-out, sump emptying, and light slurry removal from cellars, ditches, pits, ponds, and drains.
• Reliable and Durable Construction: Industrial-grade coating and high-quality materials ensure long-lasting performance.
• Automatic Operation: Float motion is managed to reduce the risk of snagging and ensure smooth operation.
• Easy to Install and Use: Comes with a built-in carry handle for portability.
• Thermal Overload Protection: In-built auto-resetting thermal overload prevents overheating and extends motor life.
• Long Power Cable: Includes a 10m H07RN-F neoprene power lead and float lead.

Specifications

• Brand: Bianco Pumpz
• Rated Power: 450W
• Maximum Flow Rate: 200 L/min
• Maximum Head: 8.5 meters
• Working Temperature: < 35°C
• Liquid Temperature Range: 2°C - 35°C
• Maximum Immersion Depth: 5 meters
• Maximum Particle Diameter: < 25mm
• Motor Duty: S1 Continuous
• Motor Protection Level: Class B
• Motor Protection: In-built auto-resetting thermal overload
• Capacitor: 18 uF +/-5% 450V
• Rated Voltage: 220V-240V, 50Hz
• Rated Current: 3.7A @ 230V
• Power Cable: 10m H07RN-F
• Protection Class: IP68
• Impeller: Single Cast Iron Impeller
• Hydraulic Body: Cast Iron
• Outlet: 2” DN with universal hose tail
• Seals: Dual Mechanical Seal and Lip Seal
• Automation Function: Vertical Float Switch
• Net Weight: 19 kg (Pump Only)
• Package Dimensions: 170L x 335W x 505H (mm)
