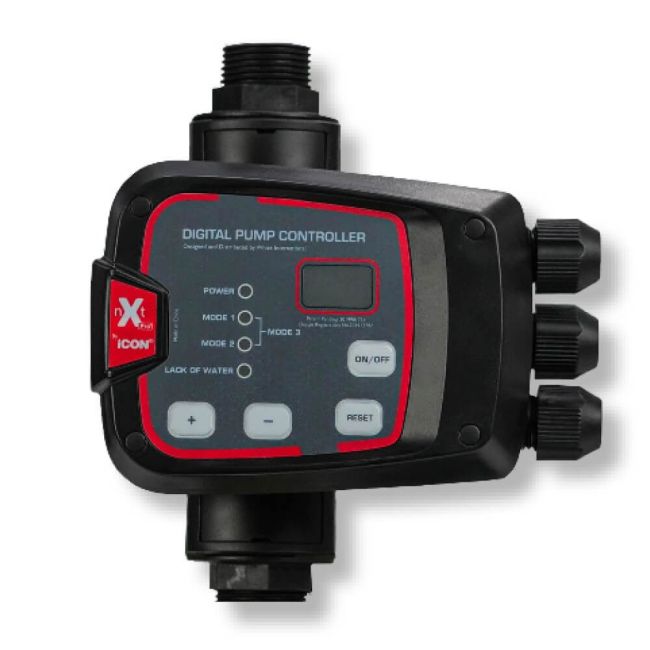

Bianco ICON nXt PRO PLUS Pump Controller BIA-NXTPROPLUS

Features

• Advanced pressurised pump control for reliable water supply.
• Designed and tested in Australia for tough environmental conditions.
• Real-time digital display indicates system pressure.
• Anti-cycle protection prevents excessive pump cycling.
• Dry run protection with auto-restart function checks water availability every 24 hours.
• Anti-seize function activates if the pump has not operated for 24 hours.
• Automatically restarts the pump after a power failure.
• Easy push-n-connect fitting with U clip for quick installation and removal.
• Complies with AS/NZ 4020 drinking water standard.
• Over-pressure protection shuts off the pump when pressure reaches 10 bar.
• Built-in overload protection for added safety.

Operational Modes

• Mode One: Adjustable cut-in pressure setting. The controller stops the pump when flow drops.
• Mode Two: Adjustable cut-in and cut-out pressure with shutdown governed by pressure (requires pressure tank).
• Mode Three: Duty/Assist dual pump pressure boosting (requires pressure tank).

Specifications

• Model: NXT PRO PLUS
• Function: ON/OFF + Config + Comms
• Modes: 3
• Size: 2.2kW
• Rated Voltage: 220-240V AC
• Maximum Amps: 16A
• Rated Power: 2200W
• IP Rating: IP65
• Union Size: 1"
• Start Pressure: Adjustable
• Stop Pressure: Adjustable
• Maximum Pressure: 10 bar (145 PSI)
• Maximum Liquid Temperature: 40°C
• Cable to Pump: Hardwired (No Cable)
• Flylead for Pump: -
• Power Cable: Hardwired (No Cable)
• Communication: ModBus RS485

Accessories (Sold Separately)

• 15 AMP Cable
• 1 ¼” Union Kit
