Features

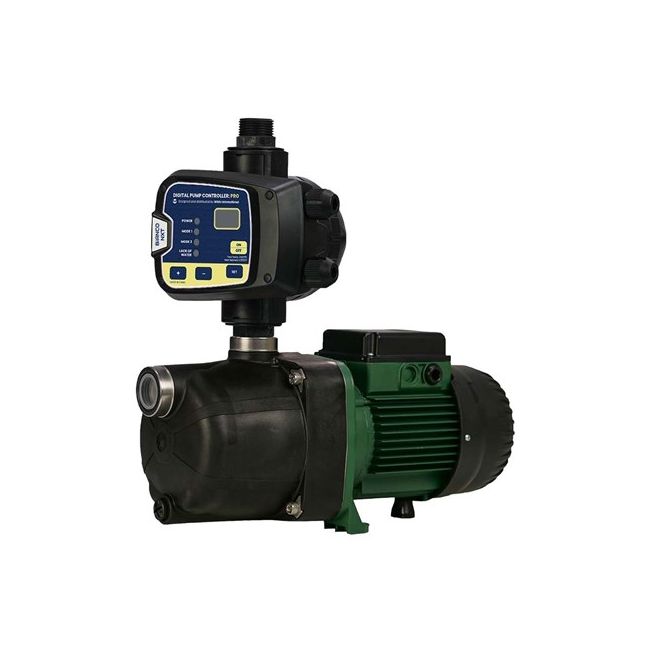

• High-Performance Jet Pump: Designed for water supply, boosting, and irrigation in domestic, agricultural, and gardening applications.
• NXT Intelligent 2-Mode Controller: Ensures automatic pressure regulation for improved efficiency and performance.
• Reliable Water Flow: Delivers a maximum flow rate of 80 liters per minute, supporting up to 8 taps.
• Strong Water Pressure: Operates at 4.7 Bar with a maximum head of 48 meters for steady and consistent water distribution.
• Energy-Efficient Motor: 1.0 kW (1.36 hp) electric motor runs on 240V for cost-effective performance.
• Drinking Water Approved: Certified safe for clean water applications.
• Durable & Compact Design: Built with high-quality materials for long-lasting reliability.
• Easy Installation: Features a 1" BSPF inlet and 1" BSPM outlet for secure and straightforward setup.

Specifications

• Brand: DAB Pumps
• Product Type: Pressure System
• Suitable For: Clean Water
• Maximum Pressure: 4.7 Bar
• Approval: Approved for Drinking Water
• Flow Capacity: 0 - 99 L/min
• Maximum Flow Rate: 80 L/min
• Head Range: 40 - 59 meters
• Maximum Head: 48 meters
• Motor Power: 1.0 kW (1.36 hp)
• Pressure: 470 kPa
• Power Source: Electric
• Voltage: 240V
• Number of Taps Supported: 8
• Inlet Connection: 1" BSPF
• Outlet Connection: 1" BSPM
• Power Consumption: 1000W

Warranty

• 2-Year DAB Pumps Warranty: Covers parts and labor for peace of mind.
