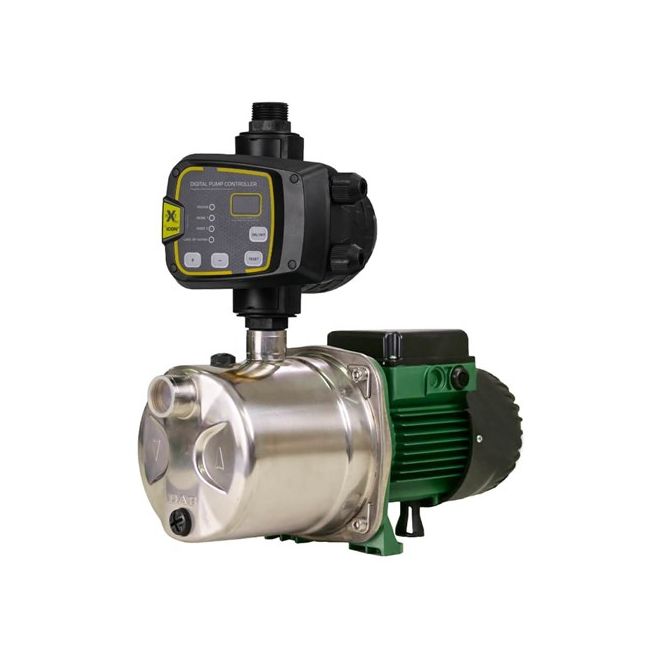

Features

• Powerful Pressure System: Ideal for medium to large homes and high-density urban applications.
• High Performance: Delivers a maximum flow rate of 80 liters per minute, supporting up to 8 taps.
• Strong Water Pressure: Operates at 4.7 Bar with a maximum head of 48 meters for reliable water distribution.
• Energy-Efficient Motor: 1.0 kW (1.36 hp) electric motor runs on 240V with a 6.6A draw.
• Drinking Water Approved: Safe for use in clean water supply applications.
• Fully Adjustable Controller: Allows cut-in pressure adjustment from 0.5 to 6 Bar for customizable performance.
• Easy Installation: Features 1" BSPF inlet and 1" BSPM outlet for secure setup.

Specifications

• Brand: DAB Pumps
• Product Type: Pressure System
• Suitable For: Clean Water
• Maximum Pressure: 4.7 Bar
• Approval: Drinking Water Approved
• Amps: 6.6 A
• Flow Capacity: 0 - 99 L/min
• Maximum Flow Rate: 80 L/min
• Head Range: 40 - 59 meters
• Maximum Head: 48 meters
• Motor Power: 1.0 kW (1.36 hp)
• Pressure: 470 kPa
• Power Source: Electric
• Voltage: 240V
• Number of Taps Supported: 8
• Inlet Connection: 1" BSPF
• Outlet Connection: 1" BSPM

Warranty

• 2-Year DAB Pumps Warranty: Covers parts and labor for peace of mind.
