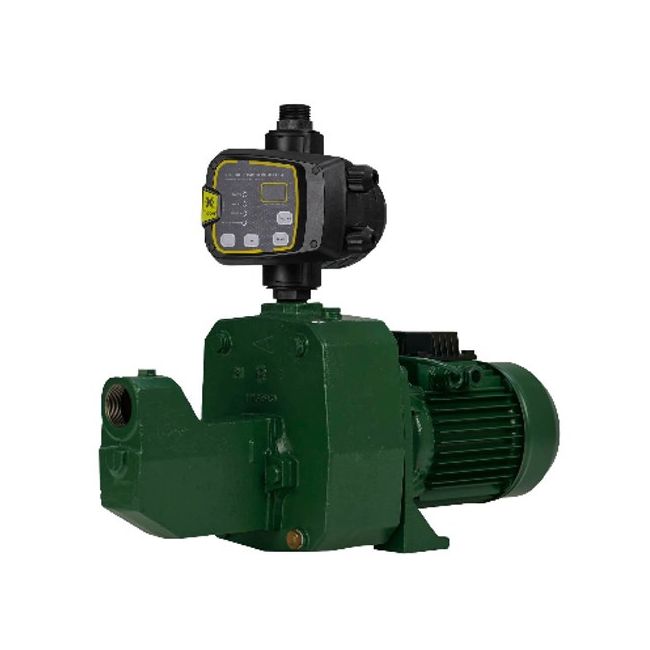

DAB 61m 1.1kW 240V Cast Iron Jet Pump with nXt PRO Pump Controller DAB-151NXTP
Availability:
In stock
SKU
DAB-151PRO
was
$2,750.00
Special Price
$2,149.95
Delivery Availability
Delivery Cost & Shipping Time
DAB PUMP SURFACE MOUNTED JET SPEAR POINT 60L/MIN 53.8M 0.75KW 240V DAB-102M
was
$924.00
Special Price
$729.95
DAB PUMP SURFACE MOUNTED JET SPEAR POINT 80L/MIN 48M 1.0KW 240V DAB-132M
was
$1,051.00
Special Price
$819.95
DAB PUMP SURFACE MOUNTED CAST IRON 175L/MIN 41M 1.47KW 415V DAB-200T
was
$2,310.00
Special Price
$1,809.95
DAB PUMP SURFACE MOUNTED CAST IRON 120L/MIN 62M 1.85KW 240V DAB-251M
was
$2,420.00
Special Price
$1,889.95
DAB PUMP SURFACE MOUNTED CAST IRON 120L/MIN 62M 1.85KW 415V DAB-251T
was
$2,420.00
Special Price
$1,889.95
DAB PUMP SURFACE MOUNTED CAST IRON 175L/MIN 51M 2.2KW 240V DAB-300M
was
$2,420.00
Special Price
$1,889.95
DAB PUMP SURFACE MOUNTED CAST IRON 175L/MIN 51M 2.2KW 415V DAB-300T
was
$2,420.00
Special Price
$1,889.95
DAB PUMP SURFACE MOUNTED JET WITH PRESSURE SWITCH 45L/MIN 42M 0.44KW 240V+ 8L TANK DAB-62MP-8V
was
$1,020.00
Special Price
$799.95
DAB PUMP SURFACE MOUNTED JET SPEAR POINT 60L/MIN 47M 0.60KW 240V DAB-82M
was
$858.00
Special Price
$669.95
DAB Surface Mounted Jet Pump with Pressure Switch 60 L/min 47m 0.60Kw 240V + 8L Tank DAB-82MP-8V
was
$1,077.00
Special Price
$839.95
Features
- Powerful Pressure System: Designed for medium to large homes and high-density urban applications.
- High-Performance Water Flow: Delivers a maximum flow rate of 75 liters per minute, supporting up to 7 taps.
- Strong Water Pressure: Operates at 6 Bar with a maximum head of 61 meters for efficient water distribution.
- Energy-Efficient Motor: 1.1 kW (1.5 hp) electric motor runs on 240V with a 7.2A draw.
- Intelligent Controller: Fully adjustable cut-in pressure from 0.5 to 6 Bar for customized operation.
- Reliable and Safe: Designed for clean water applications with durable construction.
- Easy Installation: Features a 1¼" BSPF inlet and 1" BSPM outlet for secure setup.
Specifications
- Brand: DAB Pumps
- Product Type: Pressure System
- Suitable For: Clean Water
- Maximum Pressure: 6 Bar
- Amps: 7.2 A
- Flow Capacity: 0 - 99 L/min
- Maximum Flow Rate: 75 L/min
- Head Range: 60 - 99 meters
- Maximum Head: 61 meters
- Motor Power: 1.1 kW (1.5 hp)
- Pressure: 597 kPa
- Power Source: Electric
- Voltage: 240V
- Number of Taps Supported: 7
- Inlet Connection: 1¼" BSPF
- Outlet Connection: 1" BSPM
Warranty
- 2-Year DAB Pumps Warranty: Covers parts and labor for peace of mind.
| MPN | DAB-151PRO |
|---|---|
| upc | 8059893130402 |
| Manufacturer | DAB Pumps |
