DAB VFD Pressure System Inc Transducer 3 way tee 8L Pressure Tank & Drive DAB-300MVFD
SKU: DAB-300MVFD
DAB VFD Pressure System Inc Transducer 3 way tee 8L Pressure Tank & Drive DAB-300MVFD
Availability:
In stock
SKU
DAB-300MVFD
was
$5,500.00
Special Price
$4,290.00
Delivery Availability
Delivery Cost & Shipping Time
DAB PUMP SURFACE MOUNTED CAST IRON WITH PRESSURE SWITCH 75L/MIN 61M 1.1KW 240V DAB-151MP
was
$2,420.00
Special Price
$1,890.00
DAB VFD Pressure System Inc Transducer 3 way tee 8L Pressure Tank & Drive DAB-200MVFD
was
$4,180.00
Special Price
$3,265.00
DAB PUMP SURFACE MOUNTED CAST IRON WITH PRESSURE SWITCH 120L/MIN 62M 1.85KW 240V DAB-251MP
was
$2,640.00
Special Price
$2,060.00
DAB PUMP + TANK - PUMP SURFACE MOUNTED CAST IRONWITH PRESSURE SWITCH 120L/MIN 62M 1.85KW DAB-251MP-100V
was
$3,234.00
Special Price
$2,525.00
DAB PUMP SURFACE MOUNTED CAST IRON WITH PRESSURE SWITCH 120L/MIN 62M 1.85KW 240V + 50L T DAB-251MP-50V
was
$3,058.00
Special Price
$2,390.00
DAB PUMP SURFACE MOUNTED CAST IRON WITH PRESSURE SWITCH 175L/MIN 51M 2.2KW 240V DAB-300MP
was
$2,640.00
Special Price
$2,060.00
DAB PUMP SURFACE MOUNTED CAST IRON WITH PRESSURE SWITCH 175L/MIN 51M 2.2KW 240V + 50L DAB-300MP-50V
was
$3,168.00
Special Price
$2,475.00

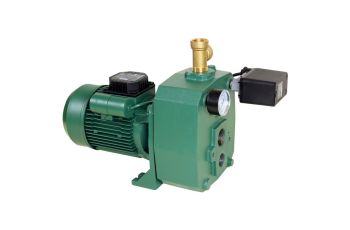

DAB PUMP SURFACE MOUNTED DEEP WELL WITH PRESSURE SWITCH 58L/MIN 60M 1.1KW 240V DAB-DP151MP
was
$2,200.00
Special Price
$1,720.00
Technical Specifications
| Brand | DAB Pumps |
| Product Type | Single Stage Jet Pump |
| Suitable For | Tank Transfer |
| Bar | 5.1 Bar |
| Flow Range Category | b. 100 - 199 L/min |
| Flow Rate (L/min) | 175 L/min |
| Hp | 3 Hp |
| kPa | 517 kPa |
| Kilo Watts | 2.2 kW |
| Casing Material | Cast Iron |
| Head Range Category | b. 40 - 59 m |
| Max Head (m) | 51 m |
| Port Size Inlet | 1 1/2" BSPF inlet |
| Port Size Outlet | 1 1/4" BSPF outlet |
| Powered | Electric |
| Volts | 240 V |
| Warranty (months) | 24 Months |
| Watts | 2200 W |

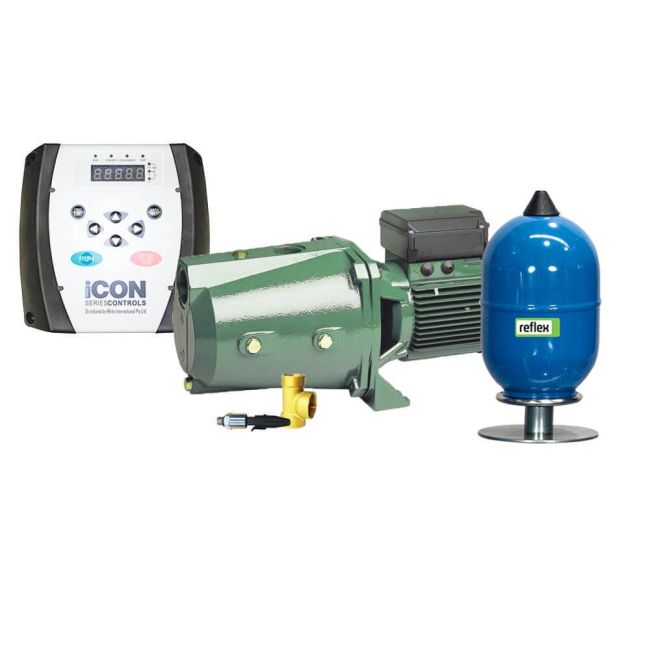

DAB and ICON VFD PUMP KIT
DAB heavy duty jet pumps and icon wall mount plug and play iDrives Includes transducer, 3 way tee, 8 litre pressure tank pre-charged to suit, and drive pre-programmed to suit
2.2kW, 3.0hp, 240V, max hd 51m, max flow 175L/m Ports 1 1/2" BSPF In, 1 1/4” BSPF Out
| MPN | DAB-300MVFD |
|---|---|
| Manufacturer | DAB Pumps |
