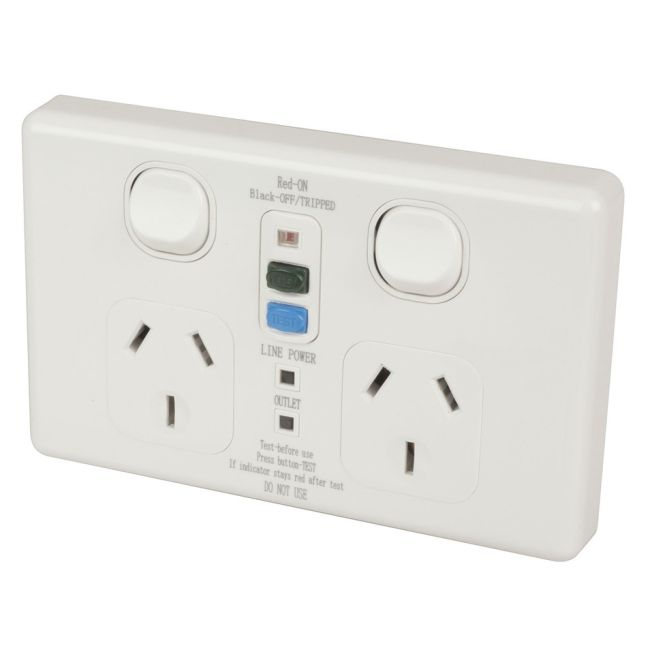

Double Power Point With In-built RCD 10A GPO Power Socket PS4048

Designed to be a direct replacement for your standard GPO fittings, combining two standard 240AC 10A mains (GPO) outlets with a built-in RCD to provide protection against electrical shock. In the event of a fault with the connected appliance or accident, such as cutting through the mains lead, the unit will provide complete isolation from mains. A test button, status indicator, and reset button allows you to check the RCD, which we recommend should be done each time before use.

Meets Australian and New Zealand safety standards.

Please Note: This item should be installed by a licenced electrician.

Features:

• Electric shock protection
• LED status indicator
• Reset and test buttons
• Line power indicator

Specifications:

• CD Classified: Type II
• Rated Tripping Current: 30mA
• Operating Speed: <40mS Max.
• L/Nin-L/Nout: 2KV
• Endurance: 2000 Cycles Minute
• Contact Break:  Double Pole
• Standards: RCD Module-AS NZS 3190, Socket-AS NZS 3112
• Minimum Back Box Depth: 35mm
• Fixing Screws: M3.0 x 25mm
• Cable Capacity: 4x2.5mm2,2x4mm2,1X6mm2

Specifications

• AC current rating : 20A
• AC Voltage rating : 240V
• AC Frequency : 50Hz
• IP Rating : 30
• Dust/Particle Ingress Protection : 3 - Objects > 2.5mm, Tools, thick wires etc
• Liquid/Moisture Ingress Protection : 0 - Not protected
• Width : 120mm
• Height : 76mm
• Depth : 50mm
• Weight : 144g
• Packaged Volume : 0.67l
• Packaged Weight : 0.18kg
• Packaged Length : 14.7cm
• Packaged Width : 8.1cm
• Packaged Height : 5.6cm
• Plug or Socket Type : Mains AU/NZ 3 Pin
• Device : Socket
• Dielectric Withstanding Voltage : 6kV
