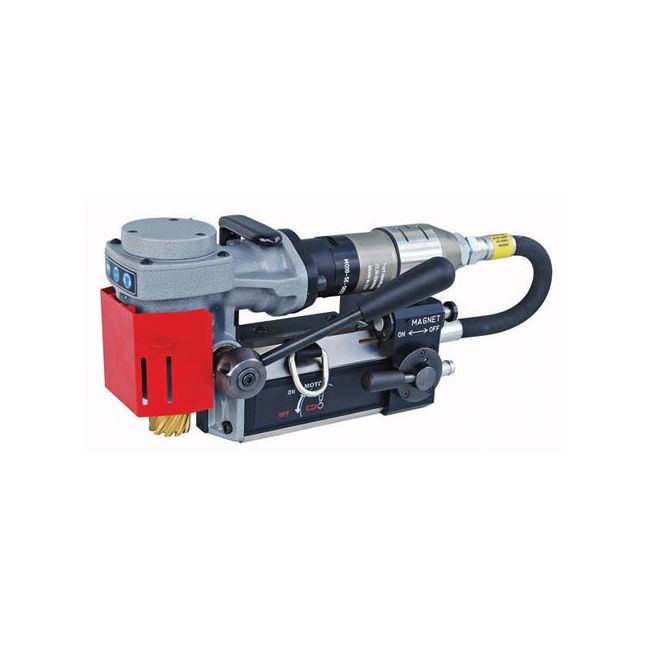

Holemaker Air 35 Pneumatic Magnetic Base Angle Drill Cap: 35MM Dia X 25MM HMP35AD
Availability:
In stock
SKU
HMP35AD
$9,148.40
Delivery Availability
Delivery Cost & Shipping Time
Holemaker Air 35 Fully Atex 11 Certified Pneumatic Magnetic Base Angle DrillCap: 35MM Dia X 25MM HMP35AD-ATEX
was
$14,259.00
Special Price
$13,999.00
Holemaker Air 45 Fully Atex 11 Certified Pneumatic Magnetic Base Drill 2MT190 / 290 Rpm Cap: 45MM Dia X 52MM HMP45-ATEX
was
$16,769.00
Special Price
$15,999.00
Holemaker PRO 110 Magnetic Base Drill 240V 4MT Cap: 110MM Dia X 110MM HMPRO110
was
$6,509.00
Special Price
$5,699.00
Holemaker PRO35 Automatic Feed Magnetic Base Drill 240V Cap: 35MM Dia X 52MM HMPRO35AUTO
was
$5,469.00
Special Price
$4,599.00
Holemaker PRO35 Magnetic Base Drill With Swivel Magnetic Base For Pipe Drilling HMPRO35-MS
was
$3,639.00
Special Price
$3,279.00
Holemaker PRO35 Magnetic Base Drill With Permanent Magnet System HMPRO35-PM
was
$3,269.00
Special Price
$2,859.00
Holemaker PRO35 Magnetic Base Drill With Special 3MM Minimum Wall Thickness Electromagnet HMPRO35-T3
was
$2,559.00
Special Price
$2,239.00
Holemaker PRO36Ad Magnetic Base Angle Drill240V Capacity: 36MM Dia X 30MM HMPRO36AD
was
$3,089.00
Special Price
$2,699.00
Holemaker PRO 65 Magnetic Base Drill 240V Cap: 65MM Dia X 75MM HMPRO65
was
$3,539.00
Special Price
$3,099.00
Features
- The HMP35AD is a small portable pneumatic drilling machine which allows holes to be drilled up to 35mm diameter in places with restricted space, using standard 3/4" Weldon Shank cutters. This machine is the lowest height pneumatic magnetic drill currently available on the world market. The combination of pneumatic drive and permanent magnetic base eliminate the need for electric power supply thus making this machine an ideal solution in many hazardous environments such as oil drilling platforms, mining industry, shipbuilding or petrochemical industry.
- *12mm twist drill capacity using Weldon Shank twist drill bits.
- The compressed-air motor used in the HMP35AD drill is certified ATEX II2G/D C IIC T6;T4 and meets the requirements for use in areas with a risk of explosion.
Specifications
- Capacity ( Diameter ): 35mm
- Capacity ( Depth ): 25mm
- Motor: 800 watt pneumatic, 1400L/min
- Weight: 13.0kg
- Height: 183mm Constant Working Height
- Stroke: 39mm
- Magnetic Dead Lift: 6500Nm On 25mm Steel Plate
- Through Spindle Coolant System
- Supplied In Metal Carry Case With Cutter Guard & Safety Strap
| MPN | HMP35AD |
|---|---|
| upc | 9328042011367 |
| Manufacturer | Holemaker |
