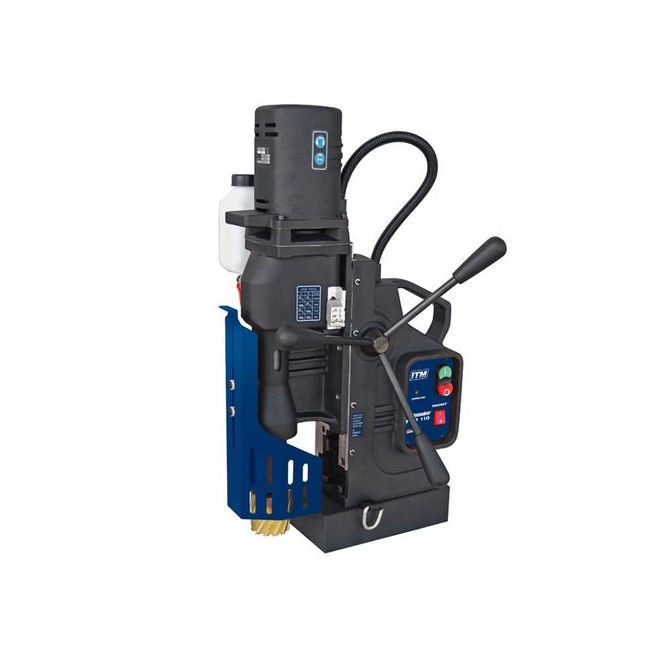

Holemaker PRO 110 Magnetic Base Drill 240V 4MT Cap: 110MM Dia X 110MM HMPRO110
Availability:
In stock
SKU
HMPRO110
was
$6,509.00
Special Price
$5,699.00
Delivery Availability
Delivery Cost & Shipping Time
Holemaker Air 35 Fully Atex 11 Certified Pneumatic Magnetic Base Angle DrillCap: 35MM Dia X 25MM HMP35AD-ATEX
was
$14,259.00
Special Price
$13,999.00
Holemaker Air 45 Fully Atex 11 Certified Pneumatic Magnetic Base Drill 2MT190 / 290 Rpm Cap: 45MM Dia X 52MM HMP45-ATEX
was
$16,769.00
Special Price
$15,999.00
Holemaker PRO35 Automatic Feed Magnetic Base Drill 240V Cap: 35MM Dia X 52MM HMPRO35AUTO
was
$5,469.00
Special Price
$4,599.00
Holemaker PRO35 Magnetic Base Drill With Swivel Magnetic Base For Pipe Drilling HMPRO35-MS
was
$3,639.00
Special Price
$3,279.00
Holemaker PRO35 Magnetic Base Drill With Permanent Magnet System HMPRO35-PM
was
$3,269.00
Special Price
$2,859.00
Holemaker PRO35 Magnetic Base Drill With Special 3MM Minimum Wall Thickness Electromagnet HMPRO35-T3
was
$2,559.00
Special Price
$2,239.00
Holemaker PRO36Ad Magnetic Base Angle Drill240V Capacity: 36MM Dia X 30MM HMPRO36AD
was
$3,089.00
Special Price
$2,699.00
Holemaker PRO 65 Magnetic Base Drill 240V Cap: 65MM Dia X 75MM HMPRO65
was
$3,539.00
Special Price
$3,099.00
Features
- The Holemaker PRO 110 is an extra heavy duty, large capacity machine capable of producing burr-free holes up to 110mm diameter by 110mm depth.
- 1650w motor with 4-speed mechanical gearbox produces superb torque through gear reduction in low speeds. No. 4 Morse Taper spindle bore for usewith taper shank drills, tapping head (M30 Capacity) and taper shank reamers.
- Supplied complete with side mounted coolant system and arbor for use with 3/4" shank Holemaker cutters up to 75mm diameter and 75mm depth of cut. Optional arbor to take 1-1/4" shank cutters up to 110mm diameter and 110mm depth. 1100ml pressure feed coolant bottle available, recommended for use with large diameter and depth hole drilling.
Specifications
- Capacity ( Diameter ): 110mm
- Capacity ( Depth ): 110mm
- Capacity ( Twist Drill ): #4 Morse Taper 47mm
- Motor Power: 1650 watt
- Input Power: 1800 watt Single Phase 240V
- Gearbox: 4 Speed Heavy Duty Mechanical Gearbox (85 / 135 / 160 / 250rpm)
- Weight: 31.0kg
- Magnetic Dead Lift: 22000Nm On 25mm Steel Plate
- Stroke: 214mm
- Height: 566mm min / 780mm max
- Through Spindle Coolant System
- Smart Magnet Technology To Ensure Sufficient Magnetic Adhesion
- Supplied In Metal Carry Case With Cutter Guard & Safety Strap
| MPN | HMPRO110 |
|---|---|
| upc | 9328042011350 |
| Manufacturer | Holemaker |
