Features

• 350mm Tungsten Carbide Tipped blade delivers cool, clean cuts with little to no finishing required, eliminating grinding and cooldown time
• Fully enclosed retractable blade guard for enhanced operator safety
• Heavy-duty vice with 90° and 45° cutting angles
• Pipe vice attachment included for secure workholding
• Suitable for cutting mild steel and aluminium
• Compatible with ITM Cermet Blades (sold separately) for cutting stainless steel
• 12-month warranty

Specifications

• Motor: 3hp Single Phase (240V)
• Blade Speed: 1450rpm (single speed)
• Blade Size: 350mm
• Blade Bore: 25.4mm
• Weight: 29kg
• Cutting Capacity at 90°: 25mm solid round, 120mm round tube, 120mm square tube, 120 x 120mm rectangle
• Cutting Capacity at 45°: 25mm solid round, 90mm round tube, 90mm square tube, 120 x 90mm rectangle
• Replacement Blade Options:
  • SSBL350-MS: Mild steel up to 25.4mm
  • SSBL350-TS: Thin mild steel up to 6mm
  • SSBL350-AL: Aluminium up to 25.4mm
  • SSBL350-CERMET64: Stainless steel up to 25mm (64-tooth, general purpose) - Diameter 355mm, Bore 25.4mm, Kerf 2.4mm, Thickness 2.0mm, Max 1500rpm; Solid: mild steel 4-25mm, stainless 4-10mm; Wall: mild steel 2-12mm, stainless 2-5mm
  • SSBL350-CERMET110: Stainless steel up to 6mm (110-tooth, thin material) - Diameter 355mm, Bore 25.4mm, Kerf 2.1mm, Thickness 1.7/1.9mm, Max 1500rpm, Fluorine coating; Solid: mild steel 2-6mm, stainless 2-6mm; Wall: mild steel 1-6mm, stainless 1-6mm

Includes

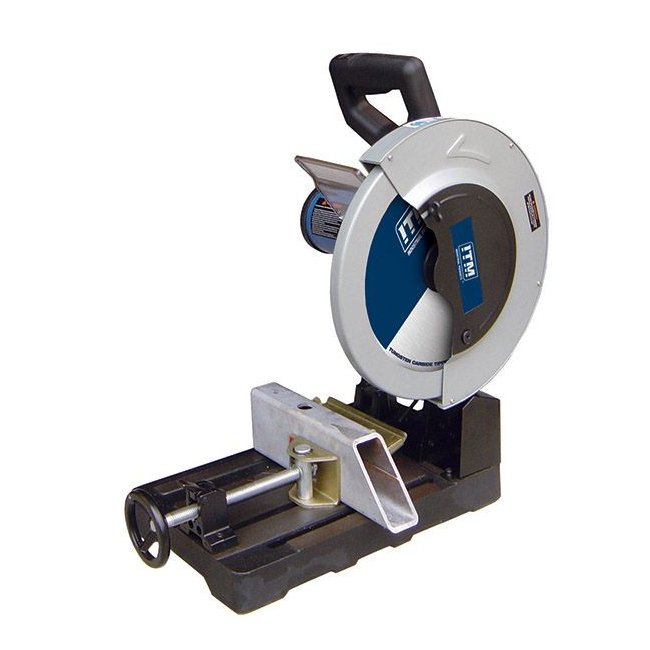

• ITM 350mm Metal Cutting Drop Saw
• Tungsten Carbide Tipped mild steel cutting blade
• Pipe vice attachment
