Features

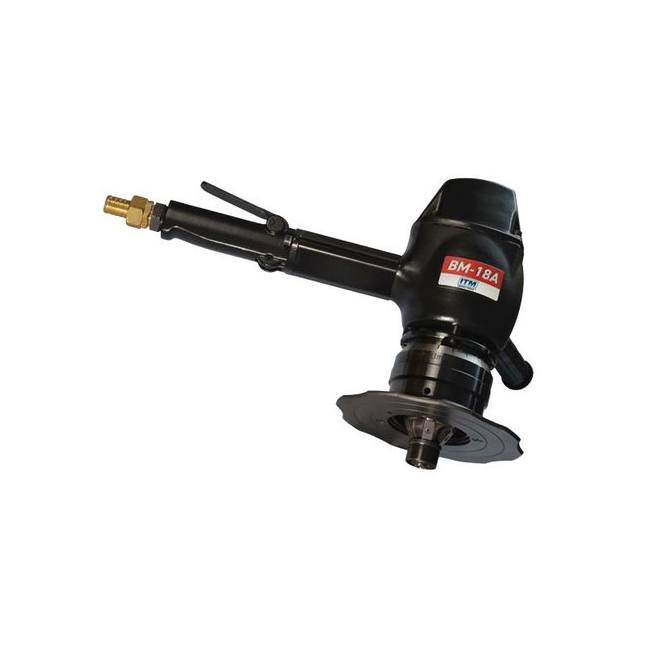

• The BM-18A is a powerful pneumatic plate beveller, capable of achieving bevel widths up to 18 mm (may require multiple passes depending on application).
• Equipped with newly designed, highly durable milling heads with hexagonal fixing, offering increased strength and easier, more user-friendly head replacement.
• Quick and simple milling head replacement process reduces downtime and enhances operational efficiency.
• Uses the same 2-sided indexable cutting inserts for beveling as the BM-16, ensuring compatibility and cost-effectiveness.
• Supports optional rounding edges in R2, R3, R4, or R5 profiles for creating smooth, rounded edges on various materials.
• Compatible with 4-sided indexable inserts for rounding, shared with BM-7 and BM-16 models for added flexibility.

Specifications

• Spindle speed (without load): 6,000 rpm
• Bevel angle options (depending on milling head): 22.5°, 30°, 37.5°, 45°, 50°, 55°, 60°
• Minimum countersinking diameter: approx. 40 mm (1.57")
• Optional rounding edge profiles: R2, R3, R4, R5
• Minimum plate thickness: 2 mm
• Air requirement: 6 bar (0.6 MPa / 87 PSI)
• Air consumption: 1,800 L/min (64 CFM)
• Pneumatic drive power: 2,800 W
• Minimum supply hose diameter: 19 mm (3/4")
• Weight (without milling head): 9.3 kg

Includes

• BM-18A bevelling machine (without milling head or cutting inserts)
• Durable plastic storage box
• Handle for improved control
• 32 mm flat wrench
• Allen wrench (hex s=6)
