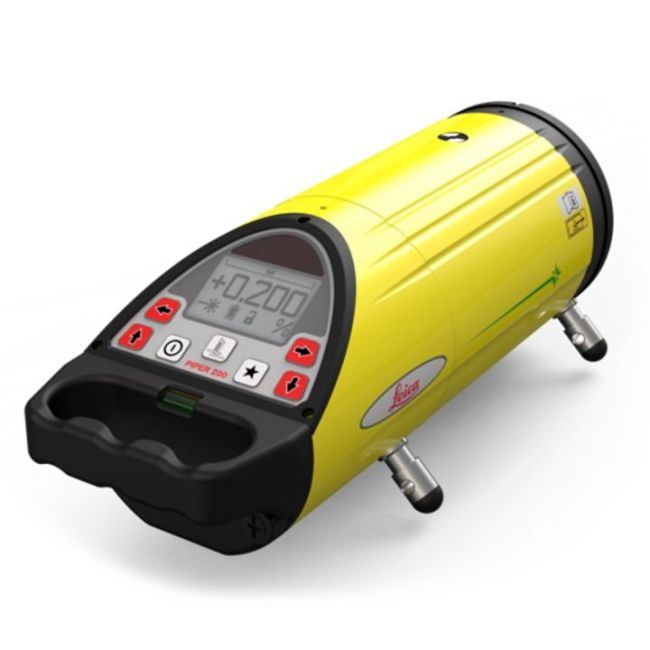

Leica Piper 200G Green Beam Pipe Laser Package LG6016958

SKU LG6016958
$7,480.00
inc. GST

Large, clear display makes grade readings easy to see and interpret on site. Compact enough to fit inside a 4 inch (10.1cm) pipe, suiting tight pipe installation work. Design allows easy and efficient setup even in the smallest manhole inverts. Produces a bright, visible beam that is focused to maintain a crisp, clear spot and consistent size over long distances. Automatic grade compensation identifies and corrects grade errors as they occur. Delivers exceptional performance, accuracy, and simplicity for sewer construction and pipe laying applications. Automatically self-levels over its full grade range, removing the need to manually tip the laser for steep slopes. Laser Beam Colour: Green. Wave Length: 520nm. Laser Class: 3R. Max. Average Radiant Power: 4.8mW. Working Range: Up to 200m. Grade Range: -10% to +25%. Self-Levelling Range: -15% to +30%. Line Movement: 6m at 30m. Battery: Li-Ion, up to 40 hours. Charging Time: 4 hours. Operating Temperature: -20 deg C to +50 deg C. Dimensions: 96mm x 267mm. Weight: 2.0kg. Housing: Cast Aluminium. Wireless Remote Distance: Front 150m, Back 10m. Self-Levelling Accuracy: +/-1.5mm at 30m. Auto Targeting: Yes. Warranty: 5 years. Brand: Leica Geosystems. Model: LG6016958. Leica Piper 200G Green Beam pipe laser. Rugged carrying case. Remote control. Target assembly. Li-ion rechargeable battery. Battery charger with AC and 12V car adapter. Self-centering feet set (150mm / 6").

Read full description

In stock

Apple Pay, Google Pay, Link and PayPal, no account needed

Delivery to your door

Secure checkoutCard, PayPal, Afterpay, Zip

Price match

Seen it cheaper somewhere else? Send us the link and we'll get back to you by email.

Seen it cheaper somewhere else? Send us the link and we'll get back to you by email.

Leica Piper 200G Green Beam Pipe Laser Package LG6016958 SKU LG6016958 Our price $7,480.00
The page where you saw the lower price.

We only use your details to reply to this request.

Request sent

Thanks. We've got your price match request for Leica Piper 200G Green Beam Pipe Laser Package LG6016958 and will reply to the email address you gave us.

Features

  • Large, clear display makes grade readings easy to see and interpret on site.
  • Compact enough to fit inside a 4 inch (10.1cm) pipe, suiting tight pipe installation work.
  • Design allows easy and efficient setup even in the smallest manhole inverts.
  • Produces a bright, visible beam that is focused to maintain a crisp, clear spot and consistent size over long distances.
  • Automatic grade compensation identifies and corrects grade errors as they occur.
  • Delivers exceptional performance, accuracy, and simplicity for sewer construction and pipe laying applications.
  • Automatically self-levels over its full grade range, removing the need to manually tip the laser for steep slopes.


Specifications

  • Laser Beam Colour: Green
  • Wave Length: 520nm
  • Laser Class: 3R
  • Max. Average Radiant Power: 4.8mW
  • Working Range: Up to 200m
  • Grade Range: -10% to +25%
  • Self-Levelling Range: -15% to +30%
  • Line Movement: 6m at 30m
  • Battery: Li-Ion, up to 40 hours
  • Charging Time: 4 hours
  • Operating Temperature: -20 deg C to +50 deg C
  • Dimensions: 96mm x 267mm
  • Weight: 2.0kg
  • Housing: Cast Aluminium
  • Wireless Remote Distance: Front 150m, Back 10m
  • Self-Levelling Accuracy: +/-1.5mm at 30m
  • Auto Targeting: Yes
  • Warranty: 5 years
  • Brand: Leica Geosystems
  • Model: LG6016958


Includes

  • Leica Piper 200G Green Beam pipe laser
  • Rugged carrying case
  • Remote control
  • Target assembly
  • Li-ion rechargeable battery
  • Battery charger with AC and 12V car adapter
  • Self-centering feet set (150mm / 6")

MPN
LG6016958
Manufacturer
Leica
