Material:
- Aluminium 225kg per width of scaffold
Features:
- Workcover design registered
- Picture (left) shows Expanda Scaff in full height configuration (using 1 Core

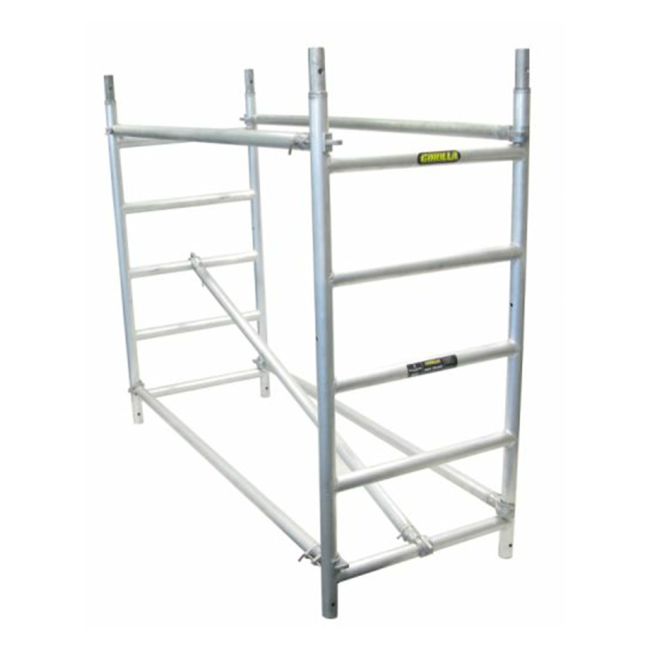

Pack and 2 Riser Packs). Also pictured are Outriggers and Ladder. - GS-01A Riser Pack (contains 4 Horizontal, 1 Diagonal Brace and 2 End Frames).
| CORE PACK CODE: GS-01 | ||
|---|---|---|
| Contents: 4 x Horizontals, 1 x Diagonal Brace, 2 x End Frames, 1 x Trapdoor Tray and 4 x 150mm (6") Locking Castors. | ||
| RISER PACK CODE: GS-01A | ||
| Contents: 4 x Horizontal, 1 x Diagonal Brace and 2 x End Frames. | ||
| OUTRIGGER PACK CODE: GS-02 | ||
| 4 x outrigger braces for use when raising core packs above single level. | ||
| JOINER PACK CODE: GS-03 | ||
| Plank and clamps to join core packs side by side. | ||
| KICKBOARDS CODE: GS-KICKB | ||
| Set of 4 Timber kickboards. Fits one core pack. | ||
| HEIGHT ADJUSTABLE CASTOR CODE: GS-S879B | ||
Sold as individual castors. |
||
| NUMBER OF PACKS |
SAFE PLATFORM HEIGHT |
WORKING HEIGHT |
| 1 Core Pack | 0.9m | 2.4-2.7m |
| 1 Core + 1 Riser | 2.1m | 3.6-3.9m |
| 1 Core + 2 Riser | 3.7m | 5.2-5.5m |
Working heights are generally measured in front of user in the space between their chest and shoulders. These heights are intended as a guide only as the height of the user will greatly vary these measurements.
For two units high use ASL-009-I Ladder.
For three units high use ASL-015-I Ladder.
