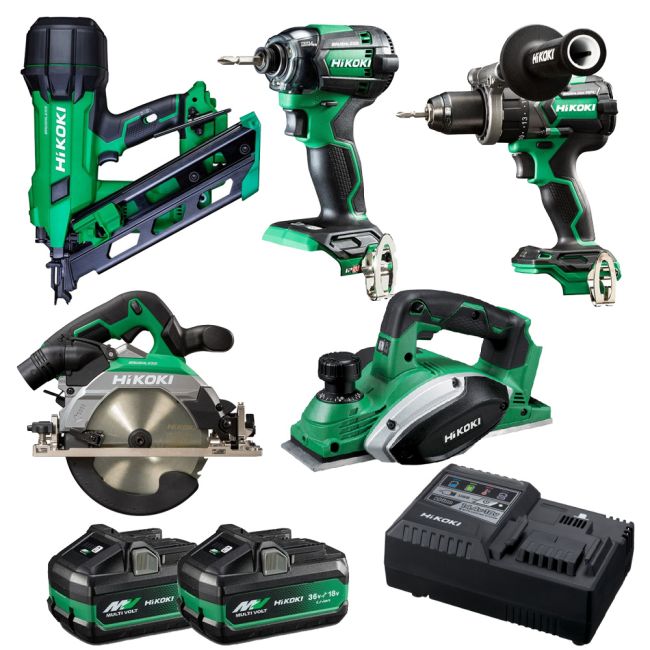

Includes

• 1 x HiKOKI 18V 90mm Brushless Framing Nailer NR1890DCA(H4Z)
• 1 x HiKOKI 18V Brushless Impact Driver Skin WH18DC(H4Z)
• 1 x HiKOKI 18V Brushless Impact Driver Drill Skin DV18DC(H4Z)
• 1 x HiKOKI 18V 165mm Brushless Circular Saw Skin C1806DB(H4Z)
• 1 x HiKOKI 18V 82mm Planer Skin P18DSL(H4Z)
• 2 x HiKOKI 18V/36V MultiVolt 2.5/5.0Ah Lithium-Ion Battery BSL36A18X
• 1 x HiKOKI 14.4 - 18V Rapid Charger UC18YSL3(H0Z)

HiKOKI 18V 90mm Brushless Framing Nailer NR1890DCA(H4Z)

Features

• Slim, lightweight, and compact design for enhanced maneuverability
• New aggressive nose allows effortless skew nailing
• Delivers high power to easily sink 90mm nails
• HiKOKI Air Spring Drive System eliminates the need for gas cartridges or fumes
• Fast firing speed of 1.8–2.7 nails per second boosts productivity
• Durable alloy magazine supports quick loading and easy maintenance
• Dry-fire lockout system prevents operation without nails
• Versatile belt/rafter hook easily switches between left and right
• Integrated LED light enhances visibility in dim environments
• Tool-less depth adjustment ensures precise and consistent results
• Advanced control panel with built-in nail counter and software management

Specifications

• Voltage: 18V
• Driving system: Air Spring Drive
• Nail type: Clipped Head
• Nail length: 50 to 90mm
• Nail angle: 30 to 34°
• Cycle rate: 1.8 to 2.7 nails/sec (intermittent)
• Firing mode: Full sequential / Contact (bump fire)
• Depth adjustment: Tool-less
• Dry-fire lockout: Yes
• Battery level indicator: On the battery
• LED light: Yes
• Hook: Belt/Rafter
• Magazine capacity: 50 nails
• Motor type: DC Brushless
• Dimensions (H x D x L): 359 × 133 × 317mm
• Weight: 3.78kg (Skin Only)

Hikoki 18V Brushless Impact Driver Skin WH18DC(H4Z)

Features

• Compact design with a powerful 180Nm maximum torque
• Triple hammer anvil minimizes vibration and “cam-out” for improved accuracy
• 3-LED lights for enhanced visibility in dark work areas
• 5 tightening modes for various applications:
• Soft mode for small screws
• Power mode for wood screws
• Bolt mode for bolts
• Bolt mode (single) for small bolts
• Self-drilling mode for self-drilling screws
• Durable brushless motor extends tool life and performance
• IP56 dust and water resistance for reliable use in challenging conditions

Specifications

• Voltage: 18V
• Motor Type: Brushless
• Switch Type: Variable speed trigger switch
• Capacity:
• Small screw: 4 - 10 mm
• Ordinary screw: 5 - 18 mm
• High-tension bolt: 5 - 14 mm
• Self-drilling screw: 3.5 - 6 mm
• Maximum Tightening Torque: 210Nm
• No-load Rotation Speed:
• Soft: 0 - 900 rpm
• Power: 0 - 3,400 rpm
• Bolt/Bolt single: 0 - 2,900 rpm
• Self-drilling screw: 0 - 3,700 rpm
• Impact Rate:
• Soft: 0 - 1,900 ipm
• Power: 0 - 4,000 ipm
• Bolt/Bolt single: 0 - 4,000 ipm
• Self-drilling screw: 0 - 2,100 ipm
• No-load Sound Pressure Level: 74.8dB
• Weight (Including Battery BSL36A18): 1.6kg
• Dimensions (L x H): 114 x 241mm
• Battery Compatibility: HiKOKI Multi Volt & 18V slide batteries

Hikoki 18V Brushless Impact Driver Drill Skin DV18DC(H4Z)

Features

• Powerful torque of 140 Nm for handling heavy-load tasks with ease
• Durable, heat-resistant design for continuous work and long-lasting performance
• Reactive Force Control (RFC) minimizes twisting of the tool body for improved stability
• Compact design with 14mm length reduction for enhanced maneuverability
• Flexible side handle can be mounted in 11 different positions for customized grip and control

Specifications

• Battery Voltage: 18V
• Motor Type: Brushless
• Switch Type: Trigger
• Drill Chuck Type: Keyless metal chuck
• Chuck Capacity: 1.5 - 13mm
• Light: LED White
• Clutch Stages: 22 (Torque 1.5 - 8.0Nm)
• Maximum Torque (Hard Joint): 140Nm
• Maximum Torque (Soft Joint): 70Nm
• No Load Speed - Low: 0 - 500rpm
• No Load Speed - High: 0 - 2,000rpm
• No Load Impact Rate: 0 - 30,000ipm
• Capacity:
• Brick & Masonry: 22mm
• Steel & Aluminium: 16mm
• Wood - Hole Saw: 102mm
• Wood - Self Feed Bit: 80mm
• Small Machine Screw: M6
• Wood Screw: M12 x 100mm
• Dimensions (L x H x W): 190 x 267 x 89mm
• Weight (including battery): 2.8kg
• Battery Compatibility: HiKOKI MultiVolt and 18V slide batteries

HiKOKI 18V 165mm Brushless Circular Saw Skin C1806DB(H4Z)

Features

• Equipped with an electric brake for enhanced operational safety and control.
• Switch easily between Power mode (4,500rpm) for performance and Silent mode (2,500rpm) for quieter operation.
• Delivers 1.2 times faster cutting speed compared to the previous C18DBAL model.
• Integrated dust collection nozzle helps maintain a cleaner work area with improved dust control.
• Ergonomic handle design ensures smooth, effortless long and shallow cuts.
• Lightweight 3.3kg build offers excellent maneuverability and reduces fatigue during extended use.

Specifications

• Max Cutting Depth at 90°: 66 mm
• Max Cutting Depth at 45°: 45 mm
• Max Cutting Depth at -5°: 57 mm
• No Load Speed: 4,500 rpm (Power Mode), 2,500 rpm (Silent Mode)
• Blade Diameter: 165 mm
• Bevel Range: -5° to 45°
• Weight: 3.3 kg (with BSL36A18 battery)
• Dimensions: 285 x 188 x 263 mm
• Battery Compatibility: HiKOKI and Hitachi MultiVolt and 18V slide batteries

HiKOKI 18V 82mm Planer Skin P18DSL(H4Z)

Features

• Heavy-duty aluminium end bracket enhances durability and stability during operation
• Rear stand provides added user safety and protects blades when not in use
• Ergonomic slim grip angled handle ensures optimal control and comfort
• Optional dust adaptor allows connection to a dust extraction system for a cleaner workspace

Specifications

• Cutting width: 82mm
• Maximum cutting depth: 2.0mm
• Maximum rebating depth: 9.0mm
• No-load speed: 16,000 (min-1)
• Weight (with BSL36A18 battery): 3.3kg
• Dimensions (L x W x H): 332 x 166 x 160mm
• Battery type: Compatible with all Hitachi and HiKOKI MultiVolt and 18V slide batteries

Hikoki 18V/36V MultiVolt 2.5/5.0Ah Lithium-Ion Battery BSL36A18X

Features

• Delivers 1080W of power while maintaining a compact and lightweight design, similar to HiKOKI's 18V batteries
• Automatic voltage change between 36V and 18V for versatility and compatibility with HiKOKI's slide battery range
• 4-stage battery indicator to display remaining charge level

Specifications

• Battery Composition: Li-ion
• Voltage & Capacity: 36V-2.5Ah / 18V-5.0Ah
• Cooling System: Yes
• Charging Time: Approx. 32 minutes (when using the UC18YSL3 charger)
• Compatible Chargers: All HiKOKI chargers compatible with slide-type Li-ion batteries
• Battery Level Indicator: 4 Stage

Hikoki 14.4 - 18V Rapid Charger UC18YSL3(H0Z)

Features

• Approximately 38 minutes charging time for a 6.0Ah battery
• Approximately 32 minutes charging time for a 5.0Ah battery
• 18V Rapid charger with cooling system and USB port
• Compatible with all HiKOKI 18V slide type li-ion batteries

Specifications

• Voltage: 14.4V / 18V
• Battery Type: Lithium-ion (li-ion) Slide battery
• Fan Cooling: Yes
• Charging Time:
  • Approx. 32 minutes for 5.0Ah Battery
  • Approx. 38 minutes for 6.0Ah Battery
• Status Indicator: LED light
• USB Port: 5V, 2.0Ah
