Features

• Delivers powerful 3.2J impact energy for high-performance drilling and chiseling in concrete, steel, and wood.
• Quick-release chuck enables fast, tool-free bit changes, enhancing job site efficiency.
• Brushless motor ensures consistent power, longer runtime, and reduced maintenance needs.
• Equipped with User Vibration Protection (UVP) and a low vibration handle for greater comfort and reduced user fatigue.
• LED level with tilt detection helps ensure perfectly vertical or horizontal drilling for accurate hole alignment.
• Features Reactive Force Control (RFC), 2-step speed control, auto stop function, and a bright LED work light for precision and safety.
• One-push bit mounting and constant speed control provide smooth and stable operation in all conditions.
• Compatible with HiKOKI’s MultiVolt battery system, offering flexible power for a wide range of tools.

Specifications

• Voltage: 36V
• Motor Type: Brushless
• Switch Type: Variable Speed Trigger
• Impact Energy: 3.2 Joules
• Drilling Capacity:
• Concrete Drill Bit: 3.4 – 28 mm
• Concrete Core Bit: 25 – 50 mm
• Steel: 13 mm
• Wood: 32 mm
• No-Load Rotation Speed: 0 – 950 rpm
• Full Load Impact Rate: 0 – 4,300 bpm
• Operating Modes: Hammer Only, Drilling Only, Hammer & Drilling
• LED Work Light: Yes
• LED Level Indicator: Yes
• User Vibration Protection (UVP): Yes
• Low Vibration Handle: Yes
• Reactive Force Control (RFC): Yes
• One-Push Quick Bit Mounting: Yes
• Constant Speed Control: Yes
• 2-Step Speed Control: Yes
• Auto Stop Function: Yes
• Weight (with BSL36A18 Battery): 3.9 kg
• Dimensions (L x W x H): 356 x 91 x 232 mm

Includes

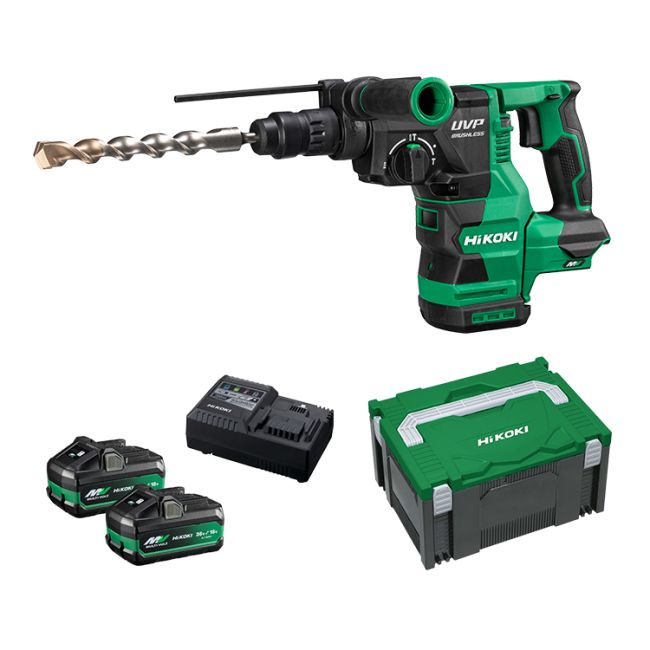

• 1 x DH3628DC 36V 28mm SDS PLUS Brushless Rotary Hammer
• 2 x BSL36A18X 18V 5.0Ah / 36V 2.5Ah MultiVolt Batteries
• 1 x UC18YSL3 18V Rapid Charger with USB Port
• 1 x Stackable Carry Case
