Features

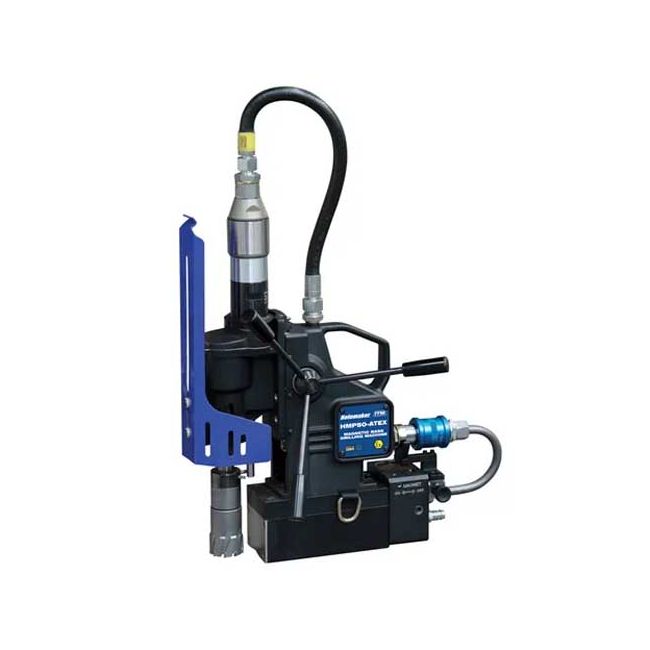

• Compact, portable pneumatic powered drilling machine that allows hole cutting up to 50mm diameter and 50mm deep using Holemaker cutters.
• No. 2 Morse Taper spindle allows a wide range of tooling to be used with the machine.
• Combination of pneumatic drive and a permanent magnetic base eliminates the need for an electric power supply, making it an ideal solution in hazardous environments such as oil drilling platforms, the mining industry, shipbuilding or the petrochemical industry.
• Machine and body are ATEX II 2G Ex h IIC 135C (T4) Gb II 2D Ex h IIIB T135C Db certified, meeting requirements for use in potentially explosive atmospheres.
• Constructed from ATEX-approved materials, safe for use in Ex zones and environments with hazardous, flammable or combustible vapours, liquids, dust or residues.
• Fitted with a strong permanent magnet that secures the drill without the need for an electric supply.
• Permanent magnetic base with a V-shaped prismatic foot enables drilling on pipes from 250mm upwards.
• Innovative sliding ON/OFF pneumatic motor switch provides compressed air to the pneumatic motor.
• Mechanical safety lock prevents accidental motor activation.
• Magnet ON/OFF indicator enhances operator safety.
• Compact size and lightweight design make it ideal for site work.
• Two-speed gearbox allows speed to be matched to the tool being used.

Specifications

• Capacity: 50mm Diameter x 45mm
• Spindle: No. 2 Morse Taper
• Certification: ATEX II 2G Ex h IIC 135C (T4) Gb II 2D Ex h IIIB T135C Db
• Brand: Holemaker
• Model: HMP50-ATEX
