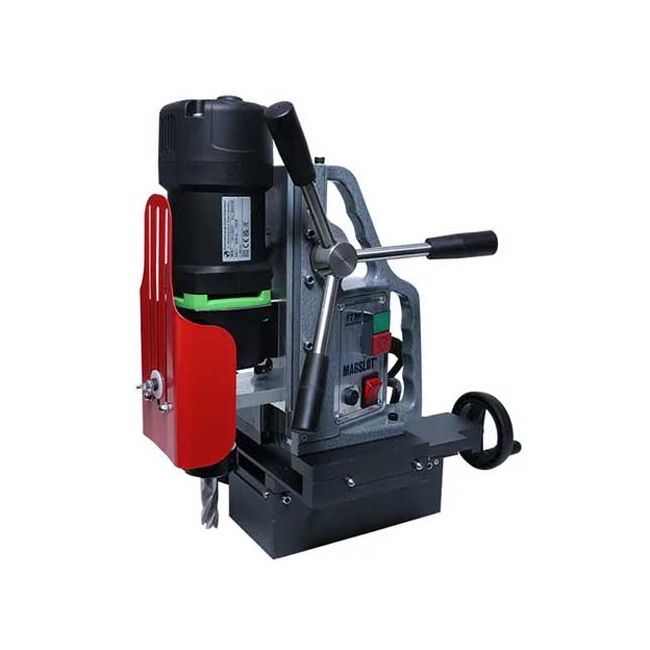

Holemaker Magslot X-Y 115mm Milling Magnetic Base Drill HMMS-20XY

SKU HMMS-20XY
$13,490.00
inc. GST

Dual-axis feed allows 115mm of milling travel per operation in both axes. Patented slide rails ensure minimal vibration and a steady cut. Weighs only 24kg, making it portable and convenient to bring to the workpiece in any position. Integrally fixed milling collet chuck (ER32) conveniently accepts end mills between M3 and M20. Optional additional 19mm shank annular broach cutter holder converts the machine into a magnetic drill capable of cutting round holes up to 40mm diameter. Lockable downward motor slide fixes the milling tool at the desired depth. Voltage: 240V. Weight: 24kg. Motor: 1100W. RPM: 720rpm (no load), 450rpm (with load). Length / Width: 420mm x 70mm (including spoke handles). Magnet Deadlift: 2500kg on 1 inch plate. Vibration Level: less than 2.5 m/s2. Endmill Cutter Range: M3 - M20. Milling Chuck Type: ER32. Maximum Vertical Travel: 190mm. Maximum Core Cutter Capacity (optional extra): 20mm. Maximum Horizontal (Slot) Feed in One Pass: 115mm. Brand: Holemaker. Model: HMMS-20XY.

Read full description

In stock

Apple Pay, Google Pay, Link and PayPal, no account needed

Delivery to your door

Secure checkoutCard, PayPal, Afterpay, Zip

Price match

Seen it cheaper somewhere else? Send us the link and we'll get back to you by email.

Seen it cheaper somewhere else? Send us the link and we'll get back to you by email.

Holemaker Magslot X-Y 115mm Milling Magnetic Base Drill HMMS-20XY SKU HMMS-20XY Our price $13,490.00
The page where you saw the lower price.

We only use your details to reply to this request.

Request sent

Thanks. We've got your price match request for Holemaker Magslot X-Y 115mm Milling Magnetic Base Drill HMMS-20XY and will reply to the email address you gave us.

Features

  • Dual-axis feed allows 115mm of milling travel per operation in both axes.
  • Patented slide rails ensure minimal vibration and a steady cut.
  • Weighs only 24kg, making it portable and convenient to bring to the workpiece in any position.
  • Integrally fixed milling collet chuck (ER32) conveniently accepts end mills between M3 and M20.
  • Optional additional 19mm shank annular broach cutter holder converts the machine into a magnetic drill capable of cutting round holes up to 40mm diameter.
  • Lockable downward motor slide fixes the milling tool at the desired depth.


Specifications

  • Voltage: 240V
  • Weight: 24kg
  • Motor: 1100W
  • RPM: 720rpm (no load), 450rpm (with load)
  • Length / Width: 420mm x 70mm (including spoke handles)
  • Magnet Deadlift: 2500kg on 1 inch plate
  • Vibration Level: less than 2.5 m/s2
  • Endmill Cutter Range: M3 - M20
  • Milling Chuck Type: ER32
  • Maximum Vertical Travel: 190mm
  • Maximum Core Cutter Capacity (optional extra): 20mm
  • Maximum Horizontal (Slot) Feed in One Pass: 115mm
  • Brand: Holemaker
  • Model: HMMS-20XY

MPN
HMMS-20XY
Manufacturer
Holemaker
