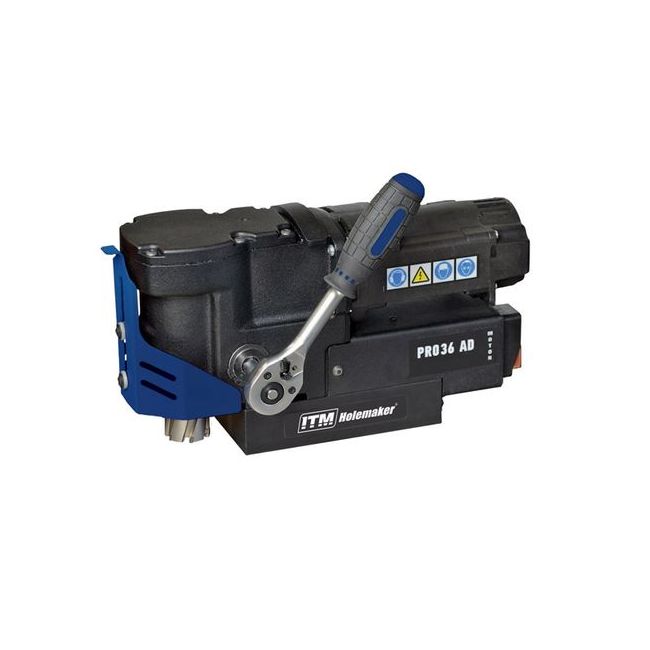

Holemaker PRO36Ad Magnetic Base Angle Drill240V Capacity: 36MM Dia X 30MM HMPRO36AD
Availability:
In stock
SKU
HMPRO36AD
was
$3,089.00
Special Price
$2,699.00
Delivery Availability
Delivery Cost & Shipping Time
Holemaker Air 35 Fully Atex 11 Certified Pneumatic Magnetic Base Angle DrillCap: 35MM Dia X 25MM HMP35AD-ATEX
was
$14,259.00
Special Price
$13,999.00
Holemaker Air 45 Fully Atex 11 Certified Pneumatic Magnetic Base Drill 2MT190 / 290 Rpm Cap: 45MM Dia X 52MM HMP45-ATEX
was
$16,769.00
Special Price
$15,999.00
Holemaker PRO 110 Magnetic Base Drill 240V 4MT Cap: 110MM Dia X 110MM HMPRO110
was
$6,509.00
Special Price
$5,699.00
Holemaker PRO35 Automatic Feed Magnetic Base Drill 240V Cap: 35MM Dia X 52MM HMPRO35AUTO
was
$5,469.00
Special Price
$4,599.00
Holemaker PRO35 Magnetic Base Drill With Swivel Magnetic Base For Pipe Drilling HMPRO35-MS
was
$3,639.00
Special Price
$3,279.00
Holemaker PRO35 Magnetic Base Drill With Permanent Magnet System HMPRO35-PM
was
$3,269.00
Special Price
$2,859.00
Holemaker PRO35 Magnetic Base Drill With Special 3MM Minimum Wall Thickness Electromagnet HMPRO35-T3
was
$2,559.00
Special Price
$2,239.00
Holemaker PRO 65 Magnetic Base Drill 240V Cap: 65MM Dia X 75MM HMPRO65
was
$3,539.00
Special Price
$3,099.00
Features
- The PRO 36 AD is an ultra-low profile mag drill, that fits in the tightest of spots. Perfect solution for any applications in confined spaces, where typical mag drills are too large. A powerful motor and strong electromagnetic base enable drilling of holes up to 36mm diameter to a depth of up to 30mm (1-3/16").
- PRO-36 AD accepts both TCT and HSS cutters as well as twist drill drills with 19,05 mm (3/4") Weldon shank.
- Features:.
- Ultra-low profile mag drill of 176mm height only. Extremely low weight of just 9.5 kg (21 lbs). Milling capacity up to 36 mm (1-7/16"Â). Accepts also twist drills with 19,05 mm (3/4"Â) Weldon shank. Stroke "“ 39 mm. Integrated swarf guard. Detachable feed lever (feat. ratchet) can be fixed from either side. Lifting handle for easy transportation. Cooling with a bottle
Specifications
- Capacity ( Diameter ): 36mm
- Capacity ( Depth ): 30mm
- Capacity ( Twist Drill ): 12mm
- Motor Power: 920 watt
- Input Power: 1000 watt Single Phase 240V
- Speed: 370rpm
- Weight: 9.5kg
- Magnetic Dead Lift: 8900Nm On 25mm Steel Plate
- Stroke: 39mm
- Height: 176mm Constant Working Height
- Through Spindle Coolant System
- Smart Magnet Technology To Ensure Sufficient Magnetic Adhesion
- Comes complete in plastic carry case
| MPN | HMPRO36AD |
|---|---|
| upc | 9328042032478 |
| Manufacturer | Holemaker |
