Features

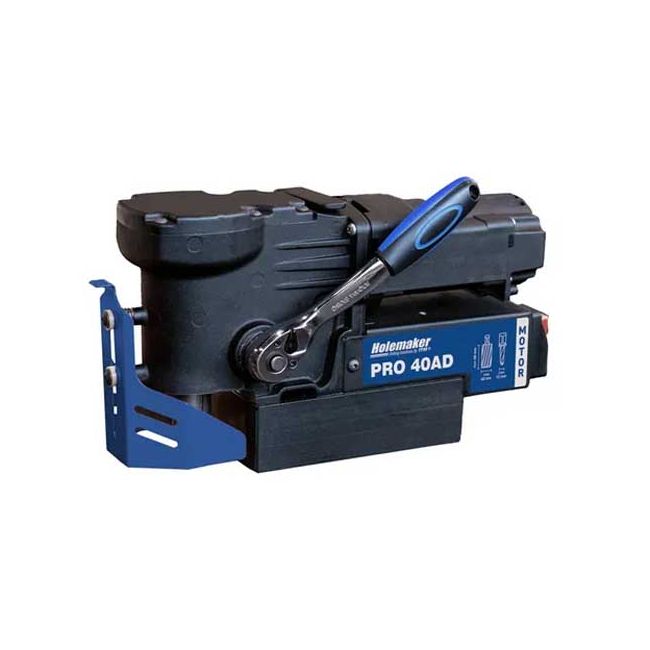

• Low-profile mag drill that fits in the tightest of spots, a perfect solution for applications in confined spaces where typical mag drills are too large.
• Powerful motor enables drilling of holes up to 40mm in diameter and up to 40mm deep.
• Innovative ultra-strong magnetic base with high performance on air gaps makes it possible to work on painted, rusted or thin surfaces.
• Magnetic Power Adhesion Control (MPAC) protects both the drill and the operator by preventing the motor from engaging if the adhesive force is dangerously low.
• Accepts both TCT and HSS cutters and twist drills with a 19.05mm (3/4 inch) Weldon shank.
• Low profile mag drill with a height of only 185mm.
• Ultra-strong magnetic base delivers 1009 kgf (9900 N) holding force.
• Compact and lightweight design weighing just 10kg.
• Milling capacity of up to 40mm with annular cutters.
• Extended stroke of 45mm allows up to 40mm depth of cut.
• Magnetic Field Shape Control (MFSC) provides maximum holding power on thin materials.
• Ratchet feed handle system can be used on either side of the machine.
• Supplied with a plastic carry case for storage and transport.

Specifications

• Voltage: 240V
• Capacity (Diameter): 40mm
• Capacity (Depth): 40mm
• Capacity (Twist Drill): 12mm
• Power: 1100W
• Speed: 370rpm
• Weight: 10kg
• Stroke: 45mm
• Magnetic Dead Lift: 9900Nm on 25mm steel plate
• Height: 185mm constant working height
• Shank: 3/4 inch standard shank cutters
• Brand: Holemaker
• Model: HMPRO40AD
