Features

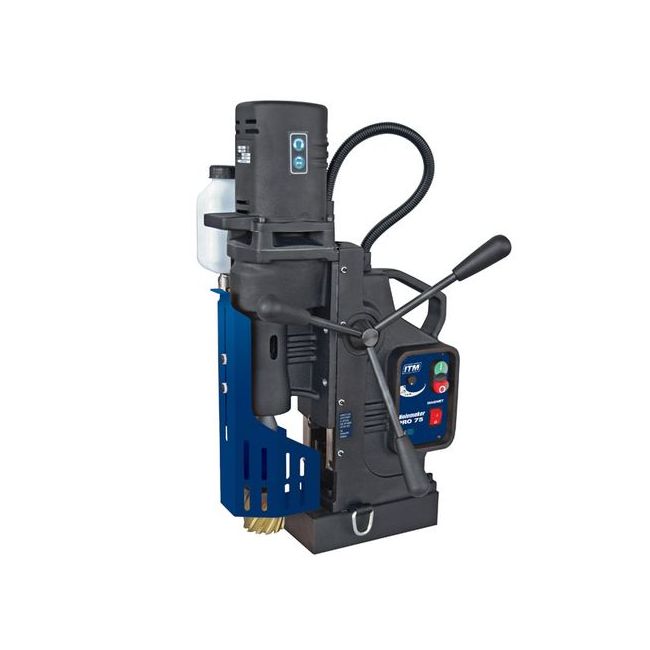

• The Holemaker PRO 75 is a versatile, multi-purpose machine, equipped with a No. 3 Morse Taper spindle. The 2 speed gearbox with electronic variable speed, Electronic Speed Stabilization System (ESSS), and motor soft start feature makes this machine ideal for tapping up to M24. With a large cutting capacity of 75mm diameter and 110mm depth using Holemaker cutters, this machine will suffice for most holemaking requirements. Other standard features include gravity feed coolant system & left or right hand feed handle operation. The unique semi-automatic gib adjustment system enables simple, fast and always correct fine tuning without any expert knowledge or experience.
• Supplied complete with arbor for use with Holemaker cutters up to 75mm depth of cut (3/4" shank). Optional arbor to take Holemaker cutters up to 110mm depth of cut (1-1/2" shanks) is also available.

Specifications

• Capacity ( Diameter ): 75mm
• Capacity ( Depth ): 110mm
• Capacity ( Twist Drill ): #3 Morse Taper 32mm
• Motor Power: 1650 watt
• Input Power: 1800 watt Single Phase 240V
• Gearbox: 2 Speed Gearbox With Electronic Variable Speed And Motor Soft Start Feature 80-160; 210-420rpm
• Weight: 27.0kg
• Magnetic Dead Lift: 19500Nm On 25mm Steel Plate
• Stroke: 214mm
• Height: 525mm min / 739mm max
• Through Spindle Coolant System
• Smart Magnet Technology To Ensure Sufficient Magnetic Adhesion
• Supplied In Metal Carry Case With Cutter Guard & Safety Strap
