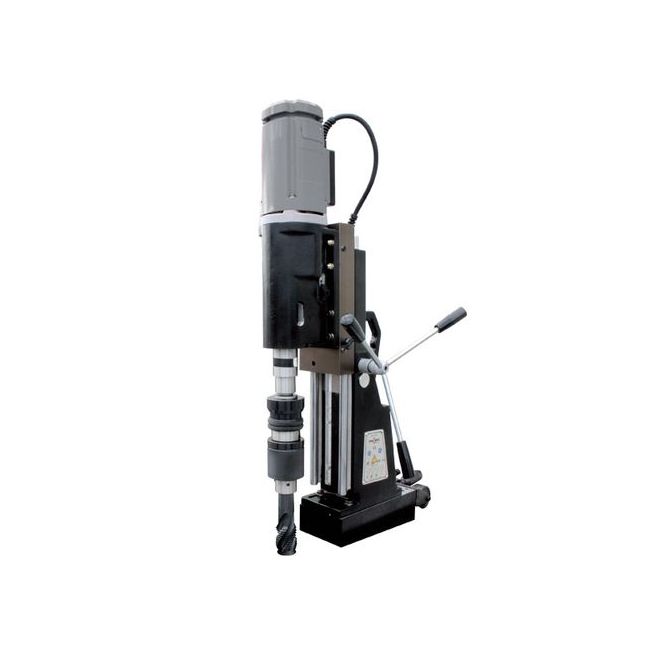

Holemaker Tap 50 Magnetic Base Drill 5MT 3Kw 240V Capacity: 200MM Dia X 310MM / M55 Tap TAP50
SKU: TAP50
Holemaker Tap 50 Magnetic Base Drill 5MT 3Kw 240V Capacity: 200MM Dia X 310MM / M55 Tap TAP50
Availability:
In stock
SKU
TAP50
was
$18,479.00
Special Price
$17,699.00
Delivery Availability
Delivery Cost & Shipping Time
Holemaker Air 35 Fully Atex 11 Certified Pneumatic Magnetic Base Angle DrillCap: 35MM Dia X 25MM HMP35AD-ATEX
was
$14,259.00
Special Price
$13,999.00
Holemaker Air 45 Fully Atex 11 Certified Pneumatic Magnetic Base Drill 2MT190 / 290 Rpm Cap: 45MM Dia X 52MM HMP45-ATEX
was
$16,769.00
Special Price
$15,999.00
Holemaker PRO 110 Magnetic Base Drill 240V 4MT Cap: 110MM Dia X 110MM HMPRO110
was
$6,509.00
Special Price
$5,699.00
Holemaker PRO35 Automatic Feed Magnetic Base Drill 240V Cap: 35MM Dia X 52MM HMPRO35AUTO
was
$5,469.00
Special Price
$4,599.00
Holemaker PRO35 Magnetic Base Drill With Swivel Magnetic Base For Pipe Drilling HMPRO35-MS
was
$3,639.00
Special Price
$3,279.00
Holemaker PRO35 Magnetic Base Drill With Permanent Magnet System HMPRO35-PM
was
$3,269.00
Special Price
$2,859.00
Holemaker PRO35 Magnetic Base Drill With Special 3MM Minimum Wall Thickness Electromagnet HMPRO35-T3
was
$2,559.00
Special Price
$2,239.00
Holemaker PRO36Ad Magnetic Base Angle Drill240V Capacity: 36MM Dia X 30MM HMPRO36AD
was
$3,089.00
Special Price
$2,699.00
Features
- The TAP 50 is a portable magnetic drilling machine with 200mm diameter drilling and M52 tapping capacity (with optional tapping head) TAP 50 has a 3.0kW single phase 240V motor. The spindle bore is No.5 Morse Taper. The TAP 50 is designed for special and challenging applications that no other portable magnetic drill has been able to solve before.
- Feed handles can be placed on the left or right sides of the machine.
- Reversible. Heavy duty dual rail slides provide rigidity and quick movement
Specifications
- Capacity (Diameter): 200mm
- Capacity (Depth): 250mm
- Capacity (Tapping): 52mm
- Capacity (Twist Drill): 52mm
- Motor Power: 2850 watt
- Input Power: Single Phase 240V
- Gearbox: 4 Speed Gearbox with electronic Hi/Low - 40/60. 90/130, 170/240, 380/545RPM
- Weight: 52.0kg
- Stroke: 330mm
- Height (min/max): 730mm / 955mm
- Video below shows machine with OPTIONAL large pressure feed coolant bottle
| MPN | TAP50 |
|---|---|
| upc | 9328042041425 |
| Manufacturer | Holemaker |
