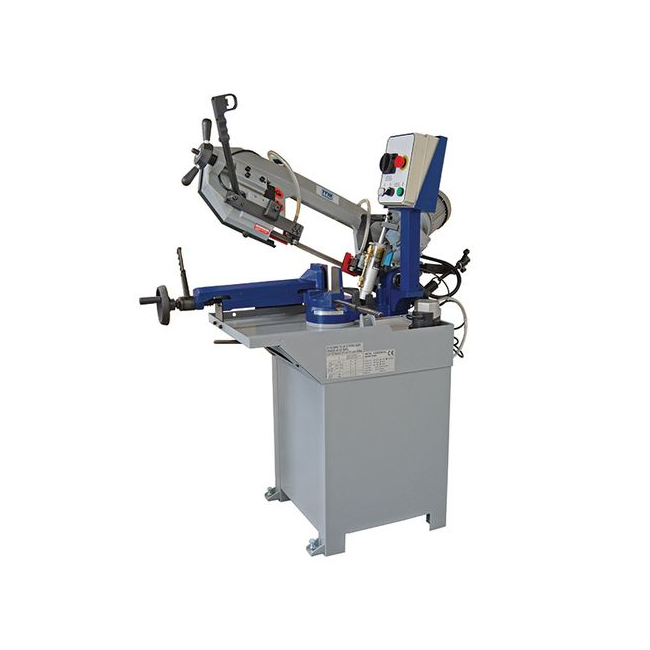

Features

• Swivel head design allows mitre cuts from 0° to 60°, providing excellent versatility for angled cutting tasks.
• Dual mode operation offers flexibility:
  • Trigger switch with manual down feed for quick, small cuts.
  • Control panel with fully adjustable hydraulic down feed and automatic shut-off at end of cut for larger material and longer cuts.
• Integrated recirculating coolant system keeps the blade cool, extends blade life, and improves cut finish quality.
• Adjustable material stop allows for consistent, repeatable cuts, making it ideal for production work.
• Equipped with a safety emergency stop switch for immediate shutdown to enhance operator safety.
• Includes a 12-month warranty for peace of mind and dependable support.
• Supplied complete with stand and blade, ready for immediate use out of the box.
• Optional brass chip brush and blade tension gauge available for additional convenience and maintenance.
• High-quality construction, made in Taiwan for reliable performance and durability.

Specifications

• Motor: 1 hp, single-phase (240V)
• Blade speed: Single speed, 80 m/min
• Blade size: 19 mm x 0.9 mm x 2110 mm
• Bed height: 895 mm
• Weight: 156 kg

Cutting Capacity

• 90° cutting capacity — Round: 170 mm; Square: 170 mm; Rectangle: 210 x 100 mm
• 45° right cutting capacity — Round: 120 mm; Square: 110 mm
• 60° right cutting capacity — Round: 70 mm; Square: 60 mm
