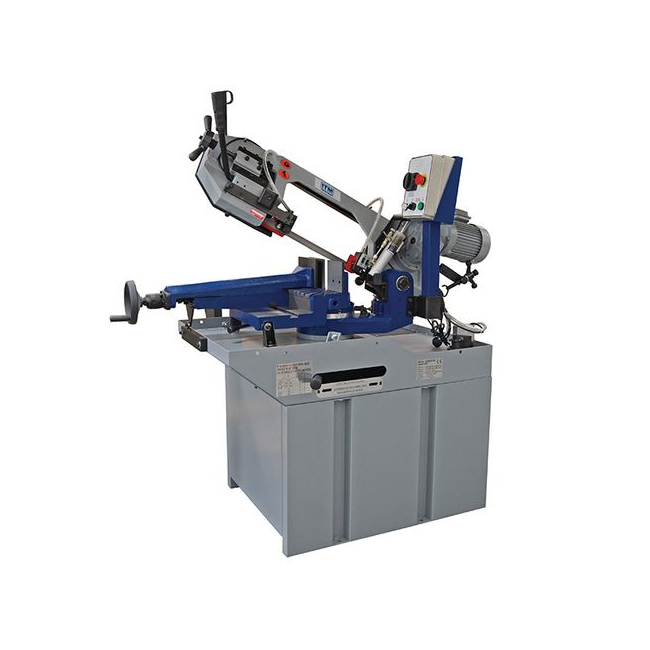

ITM 240V 1PH 227MM SWIVEL HEAD BANDSAW WP275DS-1

Features

• 2-way swivel head enables mitre cuts from 0° to 60° both right and left, offering exceptional versatility for complex angled cutting tasks.
• Dual mode operation for maximum flexibility:
  • Trigger switch with manual down feed for small, quick cuts.
  • Control panel with fully adjustable hydraulic down feed and automatic shut-off at the end of the cut for larger, precise cuts.
• Heavy-duty dual direction vice ensures secure clamping of materials from multiple angles, enhancing cutting accuracy and stability.
• Integrated recirculating coolant system keeps the blade cool, improves finish quality, and extends blade life.
• Brass chip brush helps prevent blade breakage by clearing chips during operation.
• Adjustable material stop allows for consistent, repeatable cuts — ideal for repetitive and production work.
• Equipped with a safety emergency stop switch for immediate shutdown, enhancing operator safety.
• Includes a 12-month warranty for peace of mind and reliable support.
• Supplied complete with stand and blade, ready for immediate use out of the box.
• Optional blade tension gauge available for improved blade maintenance and precision cutting performance.
• High-quality construction, proudly made in Taiwan for dependable, long-lasting performance.

Specifications

• Motor: 1.5 hp, single-phase (240V)
• Blade speed: Single speed, 72 m/min
• Blade size: 27 mm x 0.9 mm x 2460 mm
• Bed height: 900 mm
• Weight: 285 kg

Cutting Capacity

• 90° cutting capacity — Round: 220 mm; Square: 215 mm; Rectangle: 260 x 105 mm
• 45° right cutting capacity — Round: 150 mm; Square: 145 mm; Rectangle: 155 x 70 mm
• 60° right cutting capacity — Round: 90 mm; Square: 85 mm; Rectangle: 90 x 80 mm
• 45° left cutting capacity — Round: 135 mm; Square: 110 mm; Rectangle: 160 x 45 mm
