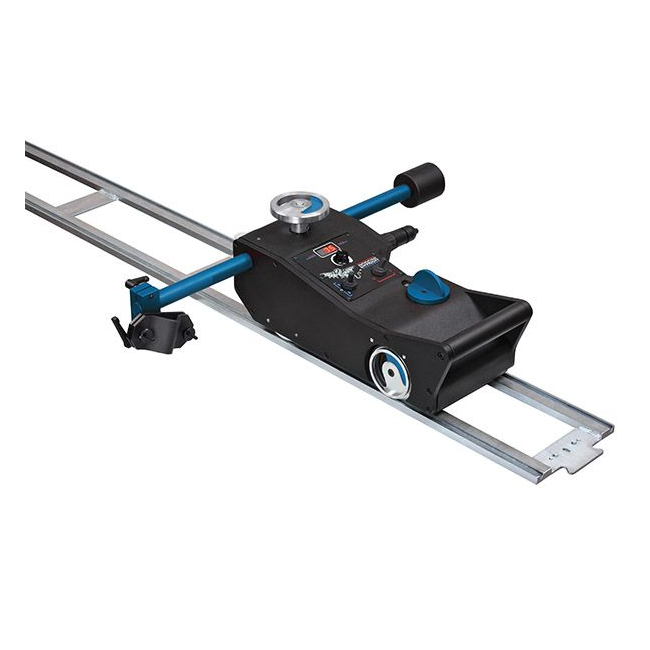

ITM 240V "DRAGON" OXY CUTTING AND BEVELLING CARRIAGE WA-DRAGON

Features

• Engineered to carry a variety of oxy-fuel cutting torches with a grip diameter of 28–35 mm, delivering precise, machine-quality cutting and beveling results across diverse applications.
• Supports cutting and beveling angles from 0° to 45°, and can operate parallel cuts with two torches for added efficiency.
• Equipped with a quick-clamp torch holder to accommodate torch diameters between 28 mm and 35 mm easily.
• Advanced digital speed control system with a PID feedback regulator ensures consistent, accurate motion.
• LED display clearly shows current and set speed, along with system status messages for user-friendly monitoring.
• Flexible operation — can travel on a rail system or directly on the workpiece surface as needed.
• 2-wheel drive with an automatic braking system for stable and reliable travel.
• Quick-release drive switch enables fast repositioning without hassle.
• Modular rail design allows for connecting multiple rail sections to customize travel length as required.
• Built with a rigid, heat-resistant construction for durability in demanding cutting environments.

Specifications

• Power supply: 115–230 VAC, 50–60 Hz
• Power consumption: 13 W
• Torch grip diameter: 28–35 mm
• Chassis-to-material clearance: 7.5 mm
• Travel system: 4 knurled wheels with 2-wheel drive mechanism
• Optional guiding equipment: "V" type rail with grooves at 152 mm centers, 1,800 mm length (Part# WAP-D6010)
• Cutting speed range: 0–1,500 mm/min
• Chassis dimensions: 427 mm (L) x 189 mm (W) x 180 mm (H)
• Weight: 16.8 kg

Includes

• Dragon carriage unit
• 580 mm torch rack
• 1.3 kg counterweight
• Torch holder with adjustable angle and height (WAP-D6030)
• Power cord
• Operator's manual
