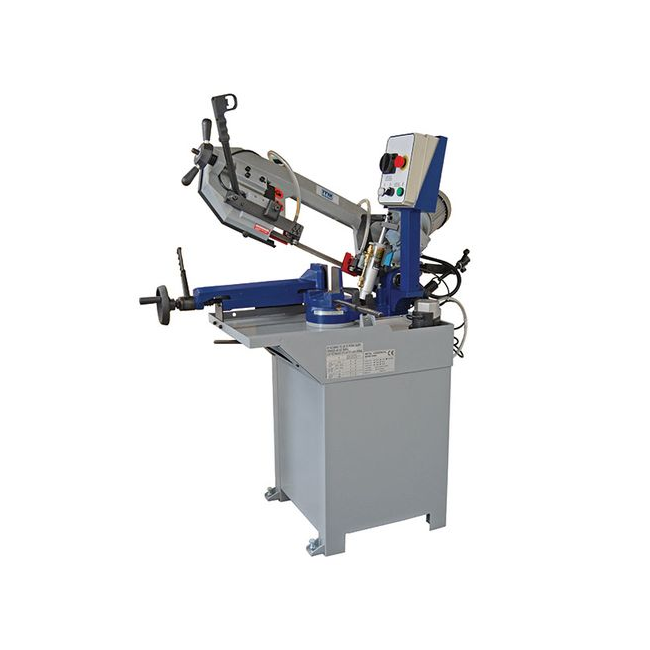

ITM 415V 3PH 170MM SWIVEL HEAD BANDSAW WP210SH-3

Features

• Swivel head design enables mitre cuts from 0° to 60°, offering excellent versatility for various angled cutting tasks.
• Dual mode operation provides flexibility for different applications:
  • Trigger switch with manual down feed for quick, small cuts.
  • Control panel with fully adjustable hydraulic down feed and automatic shut-off at the end of the cut for larger or more precise cuts.
• Integrated recirculating coolant system keeps the blade cool, improves finish quality, and extends blade life.
• Adjustable material stop allows for consistent, repeatable cuts, ideal for production and repetitive jobs.
• Equipped with a safety emergency stop switch for immediate shutdown, enhancing operator safety.
• Includes a 12-month warranty for peace of mind and reliable support.
• Supplied complete with stand and blade, ready for immediate use out of the box.
• Optional brass chip brush and blade tension gauge available for enhanced maintenance and blade performance.
• High-quality construction, proudly made in Taiwan for dependable, long-lasting use.

Specifications

• Motor: 1 hp, three-phase (415V)
• Blade speed: Two speeds — 40 / 80 m/min
• Blade size: 19 mm x 0.9 mm x 2110 mm
• Bed height: 895 mm
• Weight: 156 kg

Cutting Capacity

• 90° cutting capacity — Round: 170 mm; Square: 170 mm; Rectangle: 210 x 100 mm
• 45° right cutting capacity — Round: 120 mm; Square: 110 mm
• 60° right cutting capacity — Round: 70 mm; Square: 60 mm
