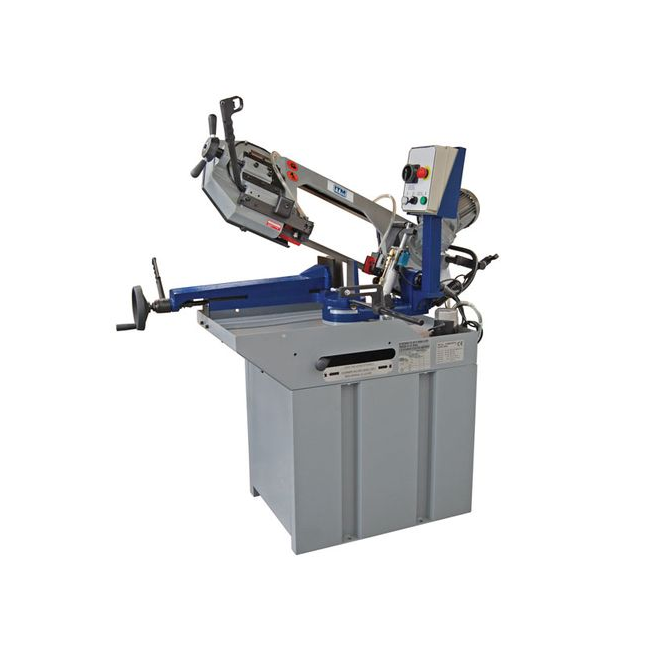

ITM 415V 3PH 220MM SWIVEL HEAD BANDSAW WP270SH-3
Swivel head design allows mitre cuts from 0° to 60°, providing excellent versatility for a wide range of angled cutting tasks. Dual mode operation for ultimate flexibility: Trigger switch with manual down feed for small, quick cuts. Control panel with fully adjustable hydraulic down feed and automatic shut-off at the end of the cut for larger, precise cuts. Integrated recirculating coolant system keeps the blade cool, enhances cutting accuracy, and extends blade life. Brass chip brush helps prevent blade breakage by keeping chips clear during cutting operations. Adjustable material stop allows for consistent, repeatable cuts, making it ideal for production and repetitive tasks. Equipped with a safety emergency stop switch for immediate shutdown, enhancing operator safety. Includes a 12-month warranty for peace of mind and dependable support. Comes complete with stand and blade, ready for immediate use out of the box. Optional blade tension gauge available for precise blade maintenance and improved cutting performance. High-quality construction, proudly made in Taiwan for dependable, long-lasting performance. Motor: 1.5 hp, three-phase (415V). Blade speed: Two speeds — 36 / 72 m/min. Blade size: 27 mm x 0.9 mm x 2460 mm. Bed height: 840 mm. Weight: 216 kg. 90° cutting capacity — Round: 220 mm; Square: 215 mm; Rectangle: 260 x 110 mm. 45° right cutting capacity — Round: 150 mm; Square: 145 mm; Rectangle: 155 x 110 mm. 60° right cutting capacity — Round: 90 mm; Square: 85 mm; Rectangle: 95 x 80 mm.
Read full descriptionSpecial Order
Apple Pay, Google Pay, Link and PayPal, no account needed
Delivery to your door
Features
- Swivel head design allows mitre cuts from 0° to 60°, providing excellent versatility for a wide range of angled cutting tasks.
- Dual mode operation for ultimate flexibility:
- Trigger switch with manual down feed for small, quick cuts.
- Control panel with fully adjustable hydraulic down feed and automatic shut-off at the end of the cut for larger, precise cuts.
- Integrated recirculating coolant system keeps the blade cool, enhances cutting accuracy, and extends blade life.
- Brass chip brush helps prevent blade breakage by keeping chips clear during cutting operations.
- Adjustable material stop allows for consistent, repeatable cuts, making it ideal for production and repetitive tasks.
- Equipped with a safety emergency stop switch for immediate shutdown, enhancing operator safety.
- Includes a 12-month warranty for peace of mind and dependable support.
- Comes complete with stand and blade, ready for immediate use out of the box.
- Optional blade tension gauge available for precise blade maintenance and improved cutting performance.
- High-quality construction, proudly made in Taiwan for dependable, long-lasting performance.
Specifications
- Motor: 1.5 hp, three-phase (415V)
- Blade speed: Two speeds — 36 / 72 m/min
- Blade size: 27 mm x 0.9 mm x 2460 mm
- Bed height: 840 mm
- Weight: 216 kg
Cutting Capacity
- 90° cutting capacity — Round: 220 mm; Square: 215 mm; Rectangle: 260 x 110 mm
- 45° right cutting capacity — Round: 150 mm; Square: 145 mm; Rectangle: 155 x 110 mm
- 60° right cutting capacity — Round: 90 mm; Square: 85 mm; Rectangle: 95 x 80 mm
- MPN
- WP270SH-3
- Manufacturer
- ITM
