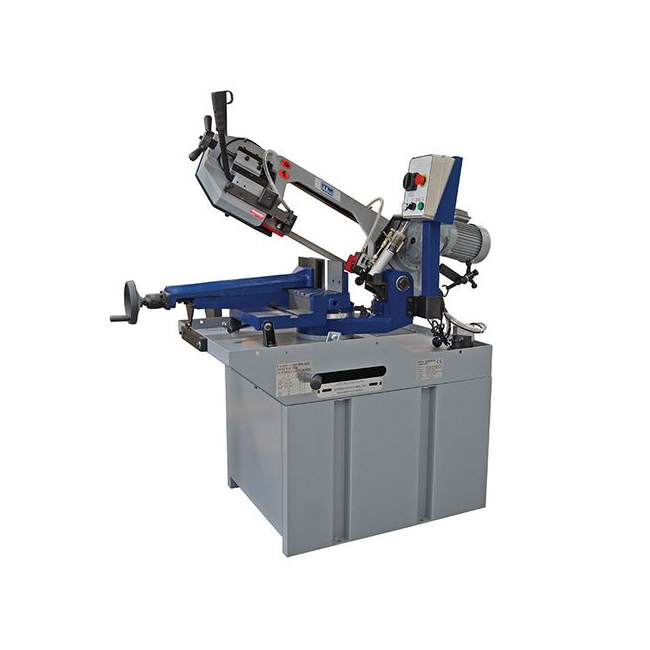

ITM 415V 3PH 227MM SWIVEL HEAD BANDSAW WP275DS-3
2-way swivel head allows precise mitre cuts from 0° to 60°, making it easy to handle a wide range of angled cutting projects. Dual mode operation offers maximum versatility: Trigger switch with manual down feed for quick, smaller cuts. Control panel with fully adjustable hydraulic down feed and automatic shut-off at the end of the cut for larger and more precise cuts. Robust heavy-duty vice with dual direction clamping ensures secure holding of materials, improving cutting accuracy and stability. Built-in recirculating coolant system keeps the blade cool, enhances cut quality, and extends blade life. Brass chip brush helps clear debris, reducing blade wear and minimizing the risk of breakage. Adjustable material stop supports consistent, repeatable cuts, ideal for production and batch work. Equipped with a safety emergency stop switch for immediate machine shutdown, ensuring operator safety. Comes with a 12-month warranty for reliable support and peace of mind. Supplied with a sturdy stand and a durable blade, ready to operate right out of the box. Optional blade tension gauge available for fine-tuning blade performance and enhancing cut precision. Expertly manufactured in Taiwan for exceptional quality and long-lasting durability. Motor: 1.5 hp, Three Phase (415V). Blade speed: Two-speed selection at 36 or 72 m/min. Blade size: 27 mm x 0.9 mm x 2460 mm. Bed height: 900 mm. Weight: 285 kg. 90° cutting capacity — Round: 220 mm; Square: 215 mm; Rectangle: 260 x 105 mm. 45° right cutting capacity — Round: 150 mm; Square: 145 mm; Rectangle: 155 x 70 mm. 60° right cutting capacity — Round: 90 mm; Square: 85 mm; Rectangle: 90 x 80 mm. 45° left cutting capacity — Round: 135 mm; Square: 110 mm; Rectangle: 160 x 45 mm.
Read full descriptionSpecial Order
Apple Pay, Google Pay, Link and PayPal, no account needed
Delivery to your door
Features
- 2-way swivel head allows precise mitre cuts from 0° to 60°, making it easy to handle a wide range of angled cutting projects.
- Dual mode operation offers maximum versatility:
- Trigger switch with manual down feed for quick, smaller cuts.
- Control panel with fully adjustable hydraulic down feed and automatic shut-off at the end of the cut for larger and more precise cuts.
- Robust heavy-duty vice with dual direction clamping ensures secure holding of materials, improving cutting accuracy and stability.
- Built-in recirculating coolant system keeps the blade cool, enhances cut quality, and extends blade life.
- Brass chip brush helps clear debris, reducing blade wear and minimizing the risk of breakage.
- Adjustable material stop supports consistent, repeatable cuts, ideal for production and batch work.
- Equipped with a safety emergency stop switch for immediate machine shutdown, ensuring operator safety.
- Comes with a 12-month warranty for reliable support and peace of mind.
- Supplied with a sturdy stand and a durable blade, ready to operate right out of the box.
- Optional blade tension gauge available for fine-tuning blade performance and enhancing cut precision.
- Expertly manufactured in Taiwan for exceptional quality and long-lasting durability.
Specifications
- Motor: 1.5 hp, Three Phase (415V)
- Blade speed: Two-speed selection at 36 or 72 m/min
- Blade size: 27 mm x 0.9 mm x 2460 mm
- Bed height: 900 mm
- Weight: 285 kg
Cutting Capacity
- 90° cutting capacity — Round: 220 mm; Square: 215 mm; Rectangle: 260 x 105 mm
- 45° right cutting capacity — Round: 150 mm; Square: 145 mm; Rectangle: 155 x 70 mm
- 60° right cutting capacity — Round: 90 mm; Square: 85 mm; Rectangle: 90 x 80 mm
- 45° left cutting capacity — Round: 135 mm; Square: 110 mm; Rectangle: 160 x 45 mm
- MPN
- WP275DS-3
- Manufacturer
- ITM
