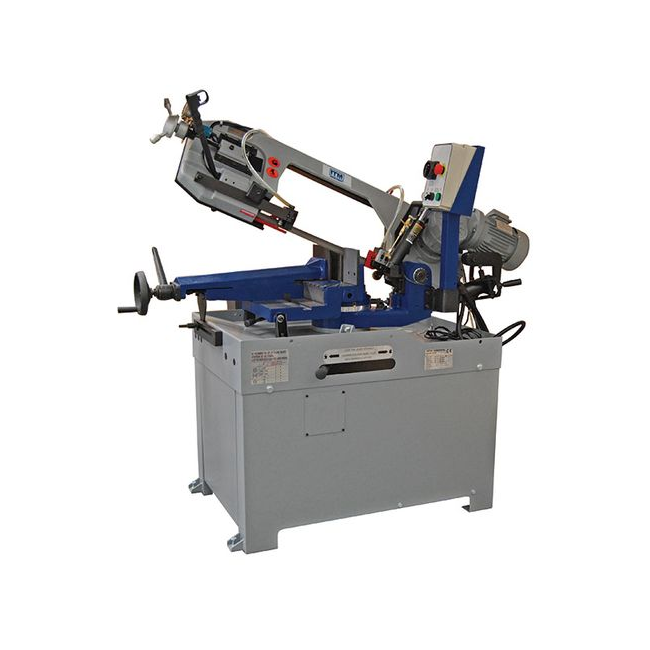

ITM 415V 3PH 240MM SWIVEL HEAD BANDSAW WP310DS-3

Features

• 2-way swivel head enables mitre cuts from 0° to 60°, providing exceptional flexibility for angled and compound cutting tasks.
• Dual mode operation offers ultimate versatility:
  • Trigger switch with manual down feed for fast, small cuts and quick adjustments.
  • Control panel with fully adjustable hydraulic down feed and automatic shut-off at the end of the cut, ideal for larger, precision cuts.
• Powerful variable speed motor allows you to cut a wide range of materials efficiently and accurately.
• Heavy-duty dual direction vice securely clamps materials from multiple angles, improving cutting stability and accuracy.
• Integrated hydraulic blade tension gauge makes it easy to achieve optimal blade tension, enhancing cutting precision and blade longevity.
• Recirculating coolant system keeps the blade cool, delivers a cleaner finish, and extends blade life.
• Brass chip brush helps remove debris during cutting, reducing blade wear and preventing breakage.
• Adjustable material stop ensures consistent, repeatable cuts, perfect for production and batch work.
• Equipped with a safety emergency stop switch for immediate shutdown and added operator protection.
• Comes with a 12-month warranty for peace of mind and reliable support.
• Supplied complete with a sturdy stand and a high-quality blade, ready to use right out of the box.
• Expertly made in Taiwan, guaranteeing dependable performance and build quality.

Specifications

• Motor: 2 hp, Three Phase (415V)
• Blade speed: Two-speed options at 36 or 72 m/min
• Blade size: 27 mm x 0.9 mm x 2725 mm
• Bed height: 895 mm
• Weight: 302 kg

Cutting Capacity

• 90° cutting capacity — Round: 240 mm; Square: 235 mm; Rectangle: 310 x 165 mm
• 45° right cutting capacity — Round: 195 mm; Square: 185 mm; Rectangle: 195 x 130 mm
• 60° right cutting capacity — Round: 120 mm; Square: 85 mm; Rectangle: 120 x 90 mm
• 45° left cutting capacity — Round: 165 mm; Square: 140 mm; Rectangle: 195 x 60 mm
