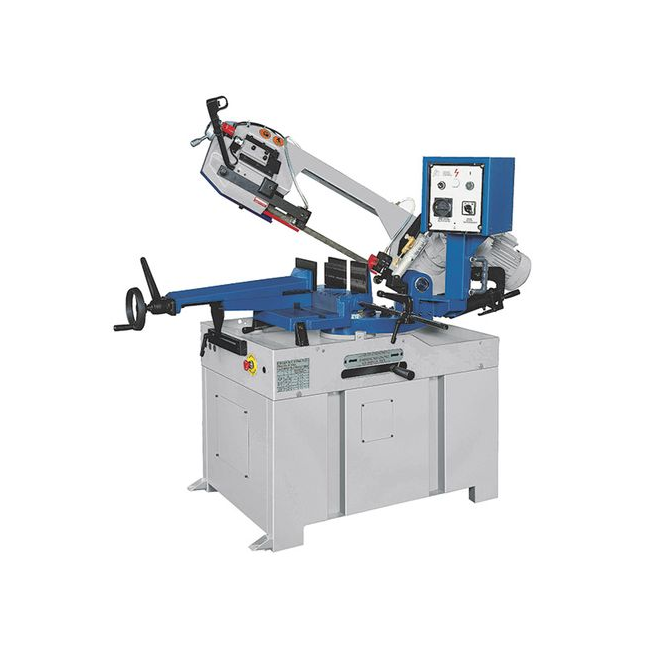

ITM 415V 3PH 260MM SWIVEL HEAD BANDSAW WE350DS

Features

• 2-way swivel head enables precise mitre cuts from 0° to 60°, offering exceptional versatility for angled and compound cutting tasks.
• Dual mode operation for ultimate flexibility and control:
  • Trigger switch with manual down feed for quick, smaller cuts and fast adjustments.
  • Control panel with fully adjustable hydraulic down feed and automatic shut-off at the end of the cut, perfect for larger and more precise cuts.
• Heavy-duty dual direction vice ensures strong, secure clamping from multiple angles, enhancing cutting accuracy and stability.
• Hydraulic blade tension gauge allows for precise tension adjustments, improving cutting accuracy and extending blade life.
• Integrated recirculating coolant system keeps the blade cool, improves finish quality, and reduces wear.
• Brass chip brush actively clears chips during operation, helping to prevent blade breakage and maintain smooth cutting performance.
• Adjustable material stop enables repeatable, consistent cuts — ideal for production work and batch processing.
• Equipped with a safety emergency stop switch for immediate machine shutdown, enhancing operator safety.
• Covered by a 12-month warranty for reliable support and peace of mind.
• Supplied complete with a sturdy stand and high-quality blade, ready for immediate use straight out of the box.
• Expertly manufactured in Taiwan for outstanding quality and long-lasting durability.

Specifications

• Motor: 2 hp, Three Phase (415V)
• Blade speed: Two-speed options at 36 or 72 m/min
• Blade size: 27 mm x 0.9 mm x 3160 mm
• Bed height: 890 mm
• Weight: 410 kg

Cutting Capacity

• 90° cutting capacity — Round: 260 mm; Square: 260 mm; Rectangle: 350 x 250 mm
• 45° right cutting capacity — Round: 230 mm; Square: 165 mm; Rectangle: 240 x 110 mm
• 60° right cutting capacity — Round: 150 mm; Square: 90 mm; Rectangle: 150 x 90 mm
• 45° left cutting capacity — Round: 200 mm; Square: 170 mm; Rectangle: 260 x 60 mm
