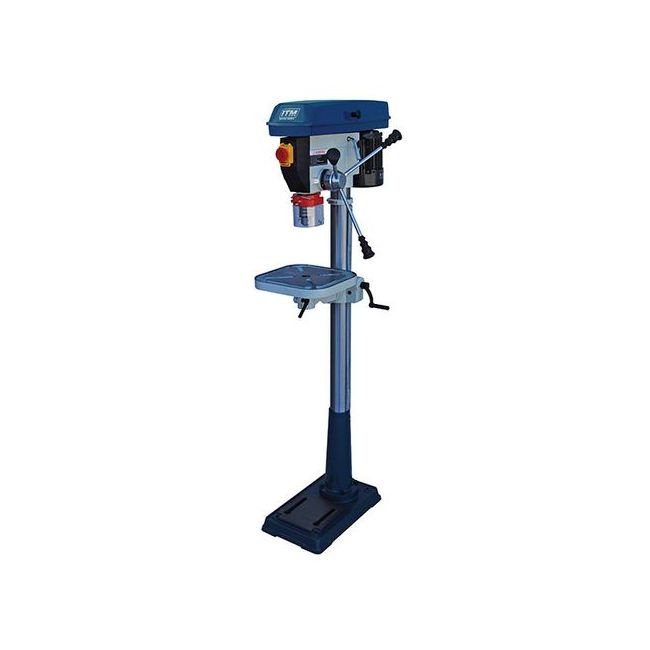

ITM 550W 16MM 16-Speed Swing Pedestal Floor Drill Press TD1416F
Availability:
In stock
SKU
TD1416F
was
$879.95
Special Price
$755.00
Delivery Availability
Delivery Cost & Shipping Time
ITM 1500W 25MM 12-Speed Swing Pedestal Floor Drill Press TD1825F
was
$1,444.95
Special Price
$1,239.80
ITM 1500W 32MM Capacity 12-Speed Pedestal Floor Drill Press TD2032F
was
$1,749.95
Special Price
$1,501.50
Features
- High-quality casting, construction, and components ensure durability and precision
- Emergency stop button enhances operator safety
- NVR (No Voltage Release) safety switch prevents accidental restart after power loss
Includes
- Chuck safety guard
- Drill chuck and arbor
- Drill drift (on MT models)
Specifications
- Drilling Capacity: 16mm (5/8")
- Spindle Taper: #2MT
- Chuck: 3–16mm B16
- Motor Power: 550W, 240V
- Spindle Travel: 85mm
- Speed: 16-speed range, 180–2770 RPM
- Swing: 360mm
- Table Size / Base Size: 290 x 290mm / 460 x 272mm
- T-Slot Size: 16mm
- Column Diameter: 72mm
- Height: 1600mm
- Net Weight / Gross Weight: 58kg / 62kg
Includes
- Optional drill press vice: VDP102 or VDP150
- Optional cross slide vice: TM130-100
| MPN | TD1416F |
|---|---|
| upc | 9328042010889 |
| Manufacturer | ITM |
