Features

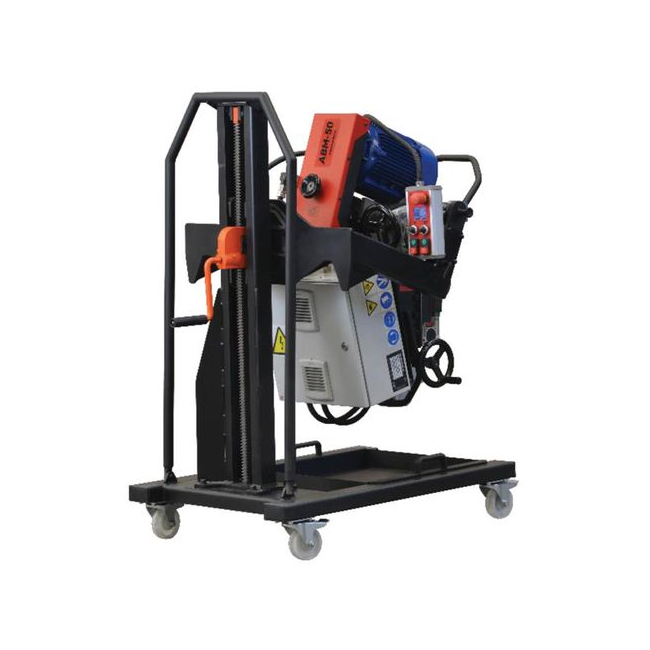

• The ABM 50 is designed to create precise, high-quality double-sided bevels without thermal distortion or heat-affected zones on plates ranging from 8 mm to 80 mm (5/16" – 3-1/8") thick.
• Uses a specially designed milling head fitted with eight 4-sided indexable cutting inserts, delivering exceptional efficiency and long-lasting performance.
• Continuously adjustable bevel angle between 15° and 60° for both top and bottom edges, with no tooling needed to change angles, ensuring fast, flexible operation.
• Real-time measurement and on-screen display of bevel geometry and cutting parameters for maximum precision and process control.
• Achieves bevel widths up to 50 mm (2") at 45°, meeting demanding preparation standards for welding and fabrication.
• 180° inversion feature allows double-sided beveling without the need to flip or rotate heavy plates, reducing handling time and improving shop safety.
• Variable spindle speed accommodates a wide range of steel grades and thicknesses, including stainless steel and aluminum.
• Equipped with a feedback-controlled overload system to protect the motor and extend tool life.
• Versatile and easy to transport on its own trolley, making it practical for shop and on-site use.
• Comes with a remote control panel and LCD display that shows exact bevel geometry and enables fine-tuning of spindle speed, feed rate, bevel angle, bevel width, bevel height, depth of cut, and spindle load.

Specifications

• Power: 6.5 kW
• Spindle speed (no load): 300 – 800 rpm
• Feed speed: 0 – 1.2 m/min (47"/min)
• Bevel angle range: 15° – 60°
• Maximum bevel width: 50 mm (2")
• Maximum depth of cut per pass: 6 mm (1/4")
• Plate thickness: 8 – 80 mm (5/16" – 3-1/8")
• Required ambient temperature: 0 – 40°C (34 – 104°F)
• Weight: 320 kg (700 lbs)
