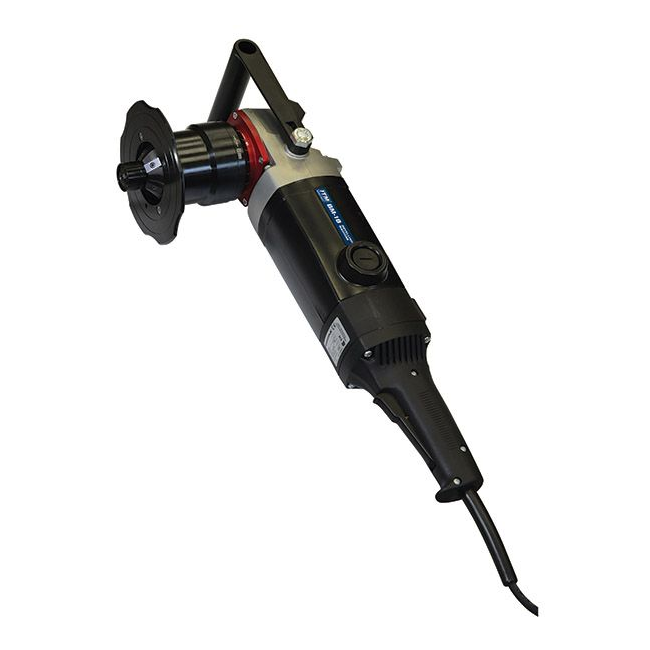

ITM BM18 18MM 240V PORTABLE BEVELLER WA-BM18

Features

• Powerful electric motor designed for heavy-duty beveling and edge preparation tasks.
• Achieves a maximum bevel width of 18 mm (may require multiple passes depending on material and application).
• Engineered to mill edges of plates and pipes made from steel, aluminum alloys, brass, or plastic, offering outstanding versatility.
• Capable of beveling materials with a minimum thickness of 1.5 mm, making it suitable for a wide range of workpieces.
• Features continuous bevel width adjustment for precise, customizable edge finishing.
• Upgraded, more durable milling heads with hexagonal fixing ensure long-lasting performance and stability during operation.
• Easy and quick milling head replacement reduces downtime and boosts productivity.
• Optional rounding inserts (R2, R3, R4, or R5) available for smooth, rounded edge profiles.
• Compatible with 4-sided indexable cutting inserts (sold separately) for extended tool life and cost savings.

Specifications

• Power: 2,200 W
• Spindle speed (without load): 1,800 – 5,850 rpm
• Maximum bevel width: 18 mm
• Bevel angle options (depending on milling head): 22.5°, 30°, 37.5°, 45°, 50°, 55°, 60°
• Minimum workpiece thickness: 2 mm
• Minimum countersinking diameter: approx. 40 mm
• Rounding edges: R2, R3, R4, R5
• Dimensions (L x W x H): 585 mm x 156 mm x 238 mm
• Weight (without milling head): 10 kg

Includes

• WA-BM18 bevelling machine (without milling head)
• Durable plastic storage box
• 32 mm flat wrench
• 6 mm Allen wrench (hex s=6)
• Contact block
• Additional 6 mm hex wrench
• Operator's manual
