Features

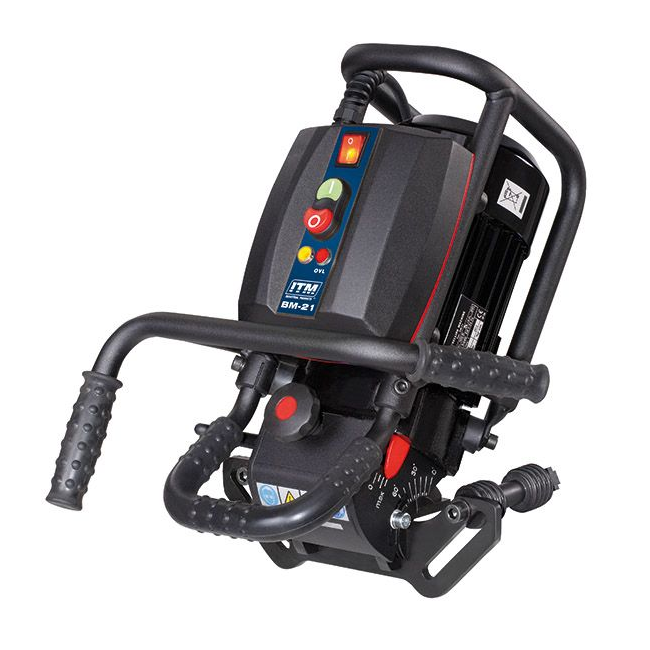

• Next-generation portable bevelling machine designed for precise edge preparation on plates and pipes before welding.
• Improved ergonomic design enhances operator comfort and work safety, reducing fatigue during long tasks.
• Available in a stainless steel-specific version (BM21S) for optimal performance on stainless applications.
• Innovative single milling head with 10 indexable inserts eliminates setup time and boosts efficiency with minimal operator effort.
• Wide working range with continuously adjustable bevel angle from 0° to 60°, allowing versatile edge finishes.
• Quick and easy adjustment of both chamfer angle and bevel width for precise, repeatable results.
• Universal guide system simplifies bevelling on both plates and pipes, improving operational flexibility.
• Capable of beveling pipes with diameters from 150 to 300 mm; optional attachment expands capacity to 260–600 mm.
• Equipped with 4 vibration isolators to protect both the operator and machine electronics from harmful vibrations, enhancing longevity and comfort.

Specifications

• Motor type: Induction motor
• Motor power: 1,600 W
• Grinding angle range: 0° – 60°
• Speed: 2,800 rpm
• Weight: 21 kg
