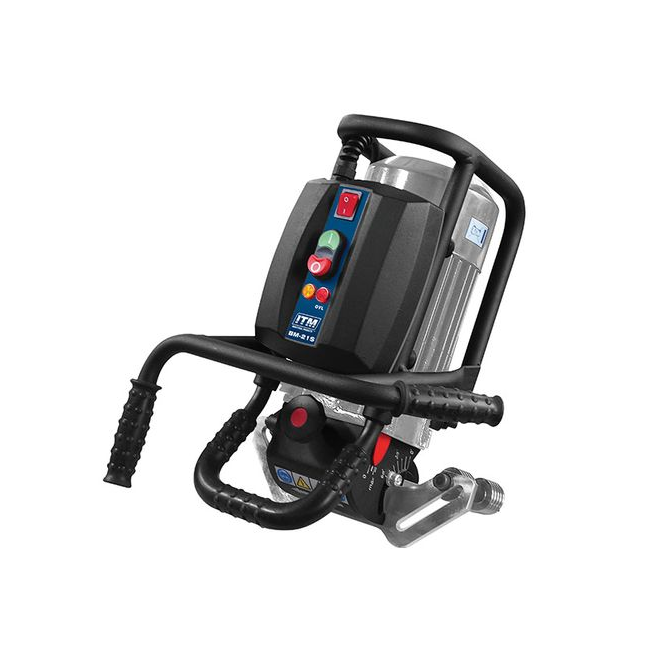

ITM BM21S 240V 1.6KW 21MM BEVELLER WA-BM21S
The BM21S bevelling machine is purpose-built for stainless steel applications, delivering precise and clean edge preparation before welding. Part of the latest BM21 series, this next-generation portable bevelling machine features an enhanced design for improved ergonomics, operator comfort, and work safety. Equipped with a new single milling head featuring 10 indexable inserts, requiring no setup and enabling faster, more efficient machining with minimal effort. Offers an extended working range with continuously adjustable bevel angles from 0° to 60°, providing maximum flexibility for various edge profiles. Allows easy adjustment of both chamfer angle and bevel width to achieve precise, repeatable results. Universal guide system simplifies bevelling of both plates and pipes, enhancing versatility on different projects. Capable of beveling pipes with diameters from 150 to 300 mm, with an optional attachment available for larger pipes ranging from 260 to 600 mm. Equipped with four vibration isolators that protect the operator and internal electronics from harmful vibration, increasing comfort and tool lifespan. Unique to the BM21S model: features a low-speed (grey color) motor, along with a guide plate and rollers made of stainless steel for superior durability and corrosion resistance. Motor type: Induction motor. Motor power: 1,600 W. Grinding angle range: 0° – 60°. Speed: 1,360 rpm. Weight: 21 kg.
Read full descriptionSpecial Order
Apple Pay, Google Pay, Link and PayPal, no account needed
Delivery to your door
Features
- The BM21S bevelling machine is purpose-built for stainless steel applications, delivering precise and clean edge preparation before welding.
- Part of the latest BM21 series, this next-generation portable bevelling machine features an enhanced design for improved ergonomics, operator comfort, and work safety.
- Equipped with a new single milling head featuring 10 indexable inserts, requiring no setup and enabling faster, more efficient machining with minimal effort.
- Offers an extended working range with continuously adjustable bevel angles from 0° to 60°, providing maximum flexibility for various edge profiles.
- Allows easy adjustment of both chamfer angle and bevel width to achieve precise, repeatable results.
- Universal guide system simplifies bevelling of both plates and pipes, enhancing versatility on different projects.
- Capable of beveling pipes with diameters from 150 to 300 mm, with an optional attachment available for larger pipes ranging from 260 to 600 mm.
- Equipped with four vibration isolators that protect the operator and internal electronics from harmful vibration, increasing comfort and tool lifespan.
- Unique to the BM21S model: features a low-speed (grey color) motor, along with a guide plate and rollers made of stainless steel for superior durability and corrosion resistance.
Specifications
- Motor type: Induction motor
- Motor power: 1,600 W
- Grinding angle range: 0° – 60°
- Speed: 1,360 rpm
- Weight: 21 kg
- MPN
- WA-BM21S
- Manufacturer
- ITM
