Features

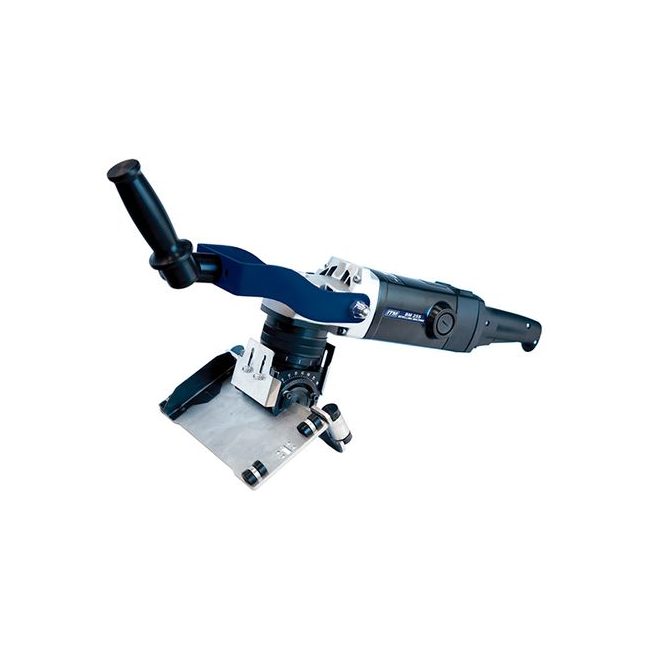

• The WA-BM25S is a portable, heavy-duty bevelling machine specifically designed for machining stainless steel, providing precise and contamination-free edge preparation.
• Equipped with a powerful motor and a face milling head, delivering smooth, efficient cutting with minimal resistance and effort from the operator.
• Capable of milling straight edges with a bevel width up to 25 mm (multiple passes may be required depending on the application).
• Continuously adjustable bevel angle from 0° to 90°, along with adjustable milling depth, offering full control over the milling process for superior results.
• Roller guide system, with all components made of stainless steel, ensures smooth, light operation and prevents contamination of the stainless workpiece.
• Advanced electronic motor overload protection safeguards the operator, the machine, and the tooling, enhancing safety and durability.
• Variable electronic speed control ranging from 1,800 to 5,850 rpm allows optimal adjustment for different materials and cutting conditions.
• Designed for heavy-duty performance while maintaining excellent ergonomics and operator comfort.
• Backed by a 2-year warranty for added peace of mind and reliability.

Specifications

• Voltage: 1~ 110–120 V, 50–60 Hz / 1~ 220–240 V, 50–60 Hz
• Power: 2,200 W
• Spindle speed (without load): 1,800 – 5,850 rpm
• Maximum bevel width: 25 mm (1")
• Maximum depth of cut: 12.5 mm (1/2")
• Bevel angle range: 0° – 90° (recommended: 15° – 75°)
• Minimum workpiece thickness: 2 mm (0.08")
• Weight: 12.5 kg (27 lb)
