Features

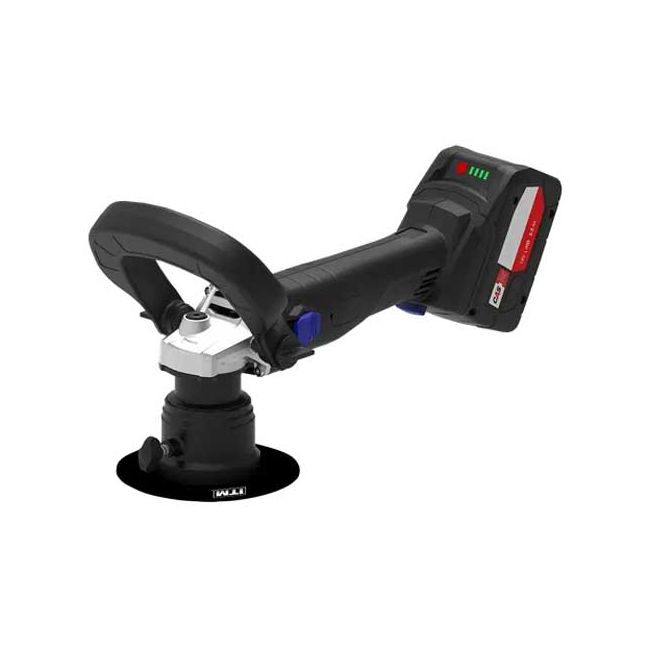

• Battery-powered, compact and lightweight machine that produces bevels up to 6mm wide on plates, pipes and contours.
• A perfect solution for rounding off radius R2, R3, R4 or R5 on metal structures before painting, preventing rust build-up on sharp edges.
• Offers greater flexibility and portability without the risk of tripping over or tangling a supply cable, ideal for working outdoors in remote areas with no power supply available.
• Supplied with a CAS battery and charger.
• Continuous bevel width adjustment up to 6mm at 45 degrees (30 degrees available as an option).
• Creates a perfect radius R2, R3, R4 or R5 in just one pass, saving time and money over conventional grinding methods.
• Ideal for use in the field as it needs no mains power and no cable to carry around.
• Powered by an 18-volt DC battery, the same CAS battery used by other cordless ITM machines.
• LiHD battery ensures maximum power availability.
• Single 45-degree milling head handles both radius and V bevels.
• Capable of countersinking holes with a minimum diameter of 40mm.
• Overload protection prevents motor damage.
• Backed by a 2 year warranty.

Specifications

• Voltage: 18V DC
• Power: 900W
• Spindle Speed (No Load): 7800rpm
• Maximum Bevel Width: 6mm (15/64 inch)
• Bevel Angle: 45 or 30 degrees (depends on milling head)
• Minimum Countersinking Diameter: 40mm (1-9/16 inch)
• Minimum Workpiece Thickness: 4mm (5/32 inch)
• Rounding Edges: R2, R3, R4, R5
• Dimensions (L x W x H): 339mm x 135mm x 319mm
• Weight (incl. milling head): 3.7kg (8.2 lbs)
• Brand: ITM
• Model: WA-BM6-18V
