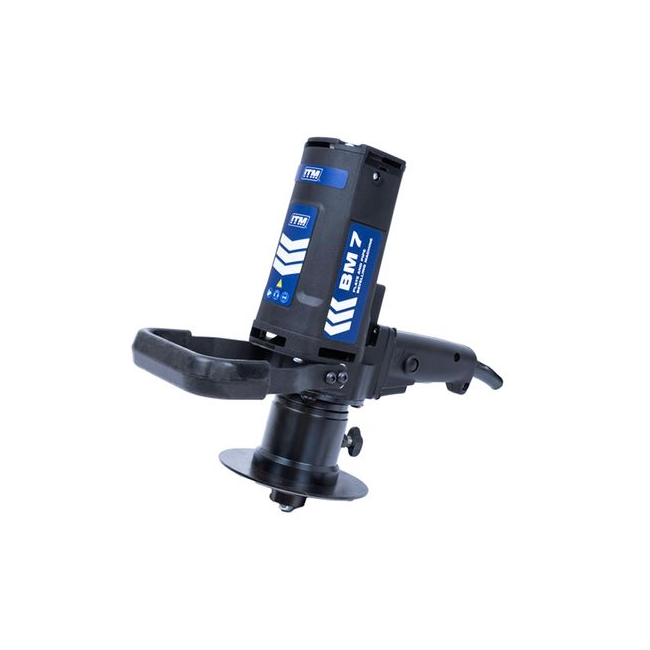

ITM BM7 240V 1100W PORTABLE BEVELLER WA-BM7

Features

• Small, lightweight, and easy to operate — ideal for precise edge rounding and beveling even in tight or restricted spaces.
• Delivers a flawless radius (R2, R3, R4, or R5) in just one pass, reducing time and operational costs compared to traditional grinding methods.
• Perfect choice for beveling steel plates, pipes, and complex contour profiles, offering maximum versatility in metal fabrication projects.
• Excellent for preparing steel edges before painting, preventing rust buildup on sharp corners and extending coating life.
• Capable of top surface beveling, arched edge beveling, and outer diameter pipe beveling, making it a multi-functional tool for various applications.
• Features infinitely adjustable bevel width to match different project specifications effortlessly.
• Comes with a versatile 45° milling head that supports both radius and V-style bevels, minimizing setup changes and improving efficiency.

Specifications

• Power supply: 1~220–240 V, 50–60 Hz
• Motor output: 1,080 W
• Spindle speed (no load): 6,500 rpm
• Max bevel width: 7 mm (0.28")
• Bevel angle: 45° standard, 30° optional
• Minimum countersinking diameter: approx. 40 mm (1.57")
• Radius edge options: R2, R3, R4, R5
• Minimum plate thickness: 5 mm
• Pipe inner diameter beveling: min. ID 40 mm
• Dimensions: 327 mm (12.9") L x 142 mm (5.6") W x 319 mm (12.5") H
• Weight (without milling head): 6.1 kg (13 lbs)

Includes

• BM-7 beveller with 45° milling head (no inserts)
• Sturdy plastic carrying case
• Special adjustment wrench
• Torx T15 screwdriver
• 5 g screw grease
• User manual
