Features

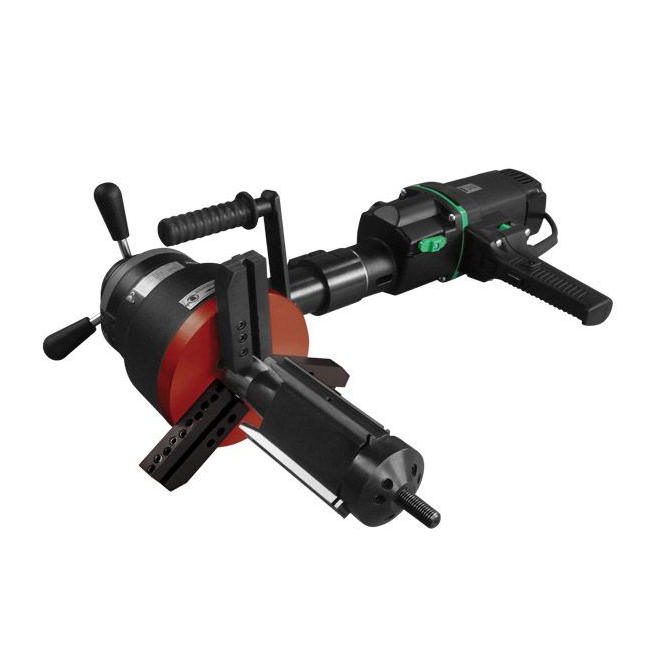

• The ITM PRO 10 PB is a European-made I.D. mounted portable pipe bevelling machine designed for heavy-duty applications, yet lightweight enough (31.5 kg) for efficient single-operator use.
• Features self-centering expandable mandrels for quick, precise alignment inside the pipe, ensuring accurate and consistent results.
• Capable of performing up to three operations simultaneously: internal bevel, external bevel, J-groove bevel, face off, I.D. chamfer, and counterbore, streamlining the preparation process and boosting productivity.
• While it can operate with a single cutting insert, optimal performance and finish quality are achieved when using three cutting inserts at once.
• Available with two power options to suit different work environments: the PRO10PBE with a high-torque electric motor and the PRO10PBA with a pneumatic motor.

Specifications

• Motor type: Electric motor, 1.8 kW
• Power requirements: 230 V / 50 Hz
• Spindle speed: 2-speed gearbox with electronic variable speed — 12–28 rpm and 41–96 rpm
• Pipe machining range with standard mandrel: 84 mm I.D. to 269 mm I.D.
• Weight (with standard mandrel): 36.0 kg

Includes

• PRO 10 PB bevelling machine
• Electric or pneumatic motor (depending on configuration)
• Mandrel for pipes 84 mm I.D. to 269 mm I.D.
• Jaw block set numbers 1 to 6
• Toolbox with tools
• Coolant bottle
