Features

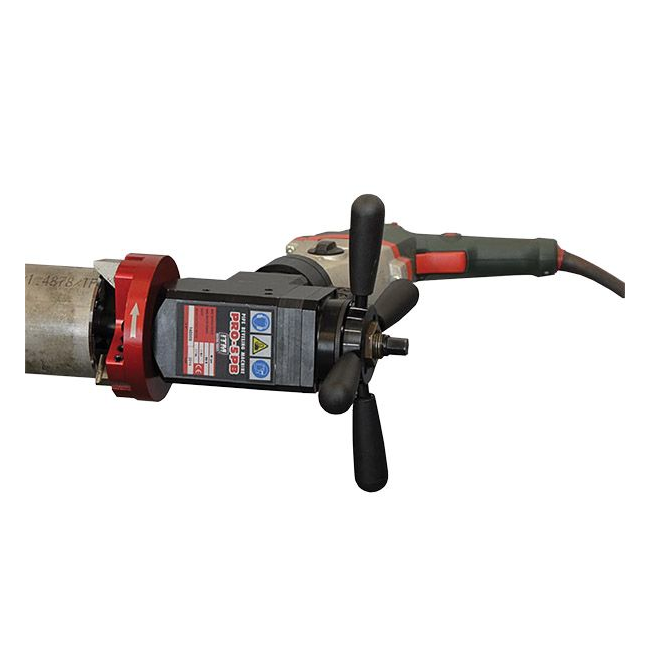

• European-made I.D. mounted pipe bevelling machine, designed for portable, single-operator use for maximum efficiency on-site or in the workshop.
• Self-centering expandable mandrel ensures fast, accurate alignment to the pipe or tube before machining, improving precision and ease of setup.
• Capable of simultaneously performing up to three operations: external bevel, internal bevel, face off, I.D. chamfer, J-groove bevel, and counterbore, enhancing versatility and reducing setup time.
• Compatible with any tool bit for pipe sizes from 25 mm I.D. up to 140 mm O.D., when equipped with one tool bit for either facing-off or beveling, regardless of length.

Specifications

• Pipe machining range: minimum 32 mm I.D., maximum 114 mm O.D.
• Minimum 25 mm I.D. possible with optional small mandrel
• Maximum 140 mm O.D. possible with optional 140 mm spindle disc set
• Maximum wall thickness: 12 mm

Includes

• PRO 5 PB bevelling machine with electric or pneumatic motor
• Mandrel for 32 mm I.D. to 107 mm I.D. range
• 118 mm spindle disc
• Three sets of jaw blocks (1, 2, 3, 4, 5, 6)
• Complete set of tools
• Coolant container
• Operator's manual
