Features

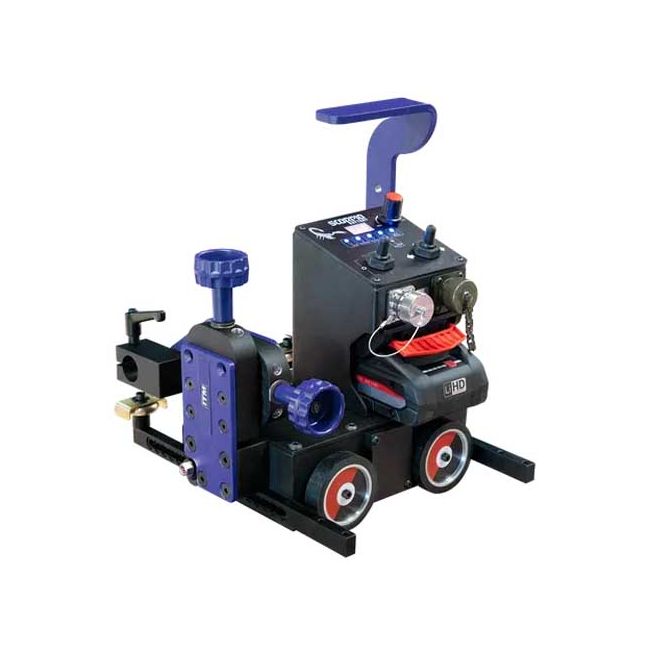

• Battery-powered, programmable welding tractor designed to produce fillet and butt welds in both stitch and continuous welding modes.
• Programming function allows the desired welding path to be set by specifying parameters such as weld length, skip length and crater filling at the beginning and end of the welds.
• CAS LiHD (High Density Lithium-Ion) battery provides sufficient power for handling even the toughest applications without the need for cables.
• Travel speed control and stabilisation enable precise matching of weld bead geometry to required specifications, reducing costly over-welding and significantly decreasing filler metal consumption.
• Can also produce weave welds with an optional pendulum oscillator, allowing precise control of weave width, weave speed and left/right side dwell times.
• Simple and ergonomic programming of welding patterns and stitch welding parameters.
• Multifunctional LED display presents travel speed, units, welding settings and diagnostic messages.
• Closed-loop speed control system stabilises travel speed, enabling uniform heat input for consistently high-quality welds.
• Uses a convenient 18V DC battery supply, the same 4.0Ah battery used in the Mini Spider Battery, Gecko Battery and Dragon Battery tractors.
• High Density Lithium-Ion battery (LiHD) ensures maximum power availability for extended periods.
• Intelligent battery management provides long-lasting performance.
• 4-wheel drive system with magnetic traction provides stable movement of the tractor.
• Backed by a 3 year warranty.

Specifications

• Voltage: 18V DC, 4Ah
• Power: 18W
• Welding Position (EN ISO 6947 and AWS/ASME): PA/1F/1G, PB/2F, PC/2G
• Minimum Path Curve Radius (Outer): 1000mm (39 3/8 inch)
• Minimum Path Curve Radius (Inner): 1250mm (49 7/32 inch)
• Torch Type: MIG/MAG
• Torch Diameter: 16-22mm (5/8-55/64 inch), up to 35mm (1.38 inch) optional
• Maximum Torch Reach: 70mm (2 3/4 inch)
• Minimum Workpiece Thickness: 4mm (5/32 inch)
• Ground Clearance: 4mm (5/32 inch)
• Horizontal Pulling Force: 150N
• Horizontal Speed (fully charged battery): 5-130cm/min (1-51in/min)
• Weight (without battery): 7kg (15.4 lbs)
• Brand: ITM
• Model: WA-SCORPIO
