Features

• Clamp Meter with automatically ranging true mean squared (TRMS) technology for increased accuracy
• Test leads measure AC/DC voltage, resistance, continuity, frequency and capacitance, and tests diodes
• Thermocouple probe measures temperature
• Low-Impedance (LoZ) mode for identifying and eliminating ghost or stray voltage
• CAT IV 600V, CAT III 1000V, Class 2, double insulation safety rating
• Built to withstand a 6.6' (2 m) drop
• Low-battery indicator and easily accessible battery compartment
• Operating temp: 0°C to 40°C (32°F to 104°F)
• Operating altitude to 6562' (2000m)
• Includes carrying pouch, test leads, thermocouple with adaptor, and batteries
• Meets requirements for use in basic and controlled electromagnetic environments such as residential, office and light-industrial locations

Specifications

• Application: Measures Current 10mA-600A
• Special Features: Features Low-Battery Indicator and Auto-Shut-Off
• Batteries: 2 x AAA
• Jaw Size (cm): 3.5
• Drop Protection: 6.6' (2 m)
• Display: 6,000-count LCD
• Display Size: 1.6'' x 1.04'' (4.1 x 2.6 cm)
• Functions: Test leads measure the AC/DC voltage, resistance, continuity, frequency and capacitance and test the diodes. Thermocouple probe measures the temperature.
• Voltage: 1,000 V AC; 1,000 V DC
• Frequency: 1 Hz-500 KHz
• Current: 600 A AC; 600 A DC
• Capacitance: 6000µF
• Ohms (Resistance): 60MO
• Temperature Range: -14 °F-1,000 °F (-26 °C-538 °C)
• Ingress Protection: IP40
• Standard: CAT IV 600 V; CE certified
• Overall Length (cm): 23.1
• Overall Height (cm): 3.9
• Overall Width (cm): 9.7

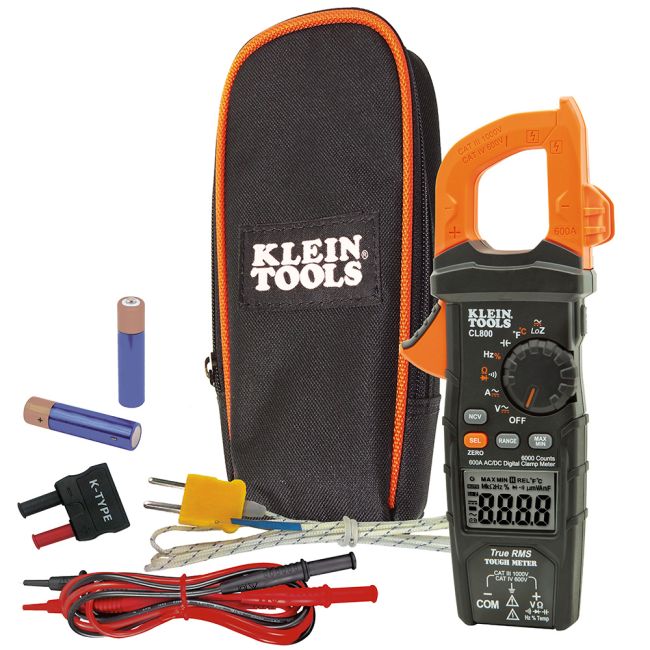

Includes

• Digital Clamp Meter
• Carrying Case
• 41'' (1041.4 mm) Test Leads
• Thermocouple with Adapter
• Batteries
