Features

• Measures air and gas pressure across Port 1 (P1), Port 2 (P2), and differential pressure
• Wide measurement range of ±60 inH2O with full-scale accuracy of ±1.5%
• Supports multiple units: inH2O, bar, oz/in², psi, mbar, kPa, inHg, mmHg, kg/cm², ftH₂O, and cmH₂O
• Displays minimum, maximum, and average pressure readings
• Strong magnet on the back allows hands-free operation on metallic surfaces
• Large, backlit LCD ensures visibility in low-light conditions
• Auto power-off and low battery indicator help conserve energy
• Hold function locks current reading on display
• Includes 2 m of silicon tubing, 3 x AAA batteries, storage pouch, and instruction manual

Specifications

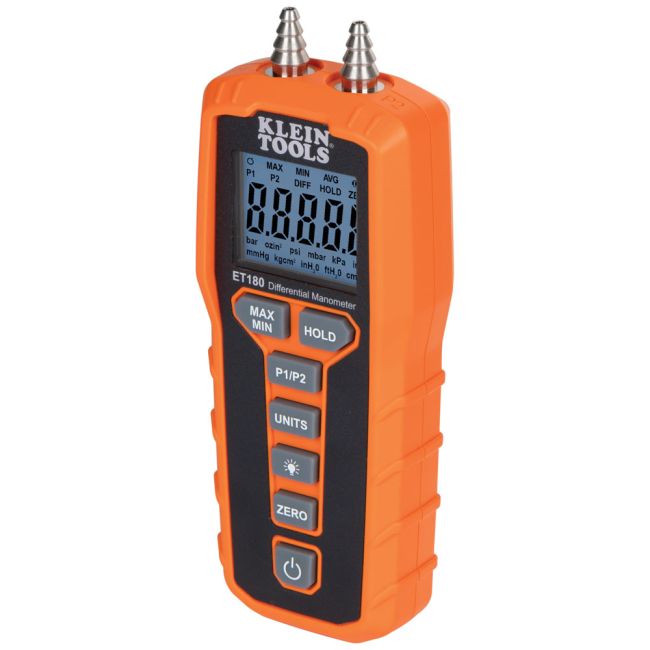

• Type: Differential Pressure Manometer
• Application: Measure Static and Differential Pressure
• Modes: P1, P2, Differential
• Pressure Range: ±60 inH2O
• Maximum Pressure: 2.16 PSI
• Accuracy: ±1.5% Full Scale
• Measurement Units: bar, oz/in², psi, mbar, kPa, inHg, mmHg, kg/cm², inH2O, ftH₂O, cmH₂O
• Number of Ports: 2
• Connector Type: Tapered Stainless Steel Ports (1/8'' to 5/15'')
• Temperature Range: 0° to 50°C (32° to 122°F)
• Display: Backlit LCD
• Batteries: 3 x AAA
• Low Battery Indicator: Yes
• Auto Power-Off: Yes
• Material: ABS, Stainless Steel
• Overall Dimensions: 6.3 cm (2.47") L x 15.7 cm (6.19") H x 3.5 cm (1.38") W
• Weight: 202 g (7.2 oz)
• Included: Manometer, 2 m Silicon Tubing, 3 x AAA Batteries, Storage Pouch, Instruction Manual
• Standard: EN 61326-1:2013; EN61326-2-3:2013; CE and UKCA Certified
• UPC: 092644693366
