Features

• Features advanced automatic controls that simplify operation.
• Designed for ease of use, requiring only minimal operator experience to get started.
• Ideal for detecting buried cables and pipes before excavation work begins.
• Helps operators locate underground utilities in advance, a major concern on construction sites.
• Helps prevent operator injury, damage to underground assets, and costly project delays.
• Enhances overall safety, efficiency, and the accuracy of project planning.

Specifications

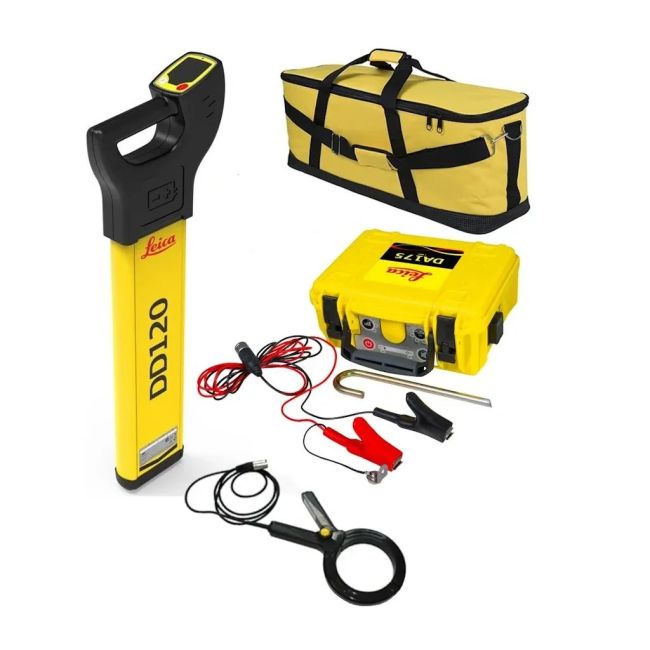

• Brand: Leica Geosystems
• Model: DD120
• Power: 50 Hz / 60 Hz Model
• Radio Frequency Range: 15 kHz to 60 kHz
• Auto Modes: Power, Radio, 33 kHz
• Transmitter Modes: 32.768 kHz (33 kHz), 8.192 kHz (8 kHz)
• Depth Range, Line: 0.3 m to 3 m (1 ft to 10 ft)
• Depth Range, Sonde: 0.3 m to 3 m (1 ft to 10 ft)
• Depth Accuracy: 10 percent (to an undistorted signal)
• Environmental Standard: IP54
• Operating Temperature: -20 deg C to +50 deg C (-4 deg F to +122 deg F)
• Battery: 6 x LR6 (AA) Alkaline
• Battery Operating Time: 15 hours (constant use at 20 deg C / 68 deg F)
• Dimensions (H x W x D): 760 x 250 x 85 mm (30 x 10 x 3.4 inches)
• Weight With Batteries: 2.7 kg (5.95 lbs)
• Internal Data Storage: No
• Data Logging: No
• GPS: No
• Bluetooth: No
