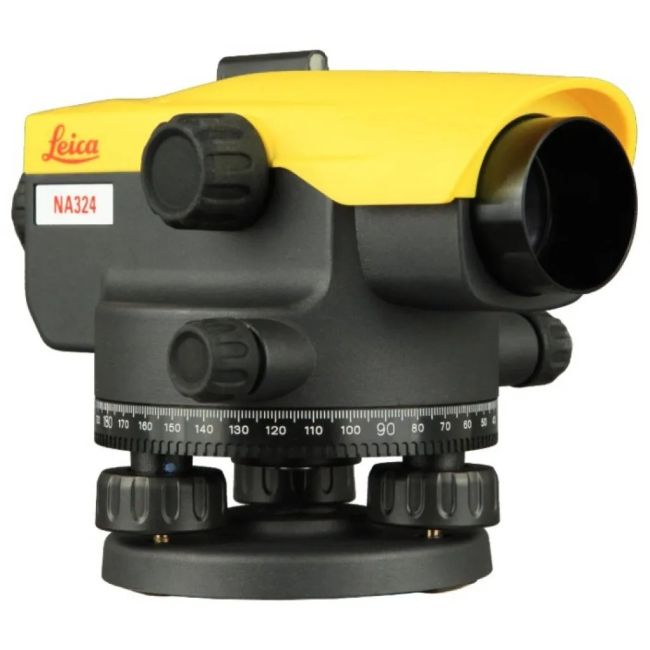

Leica NA324 24x Optical Magnification Automatic Level LG840382
or 4 interest-free payments of $99.00 with Afterpay or Zip
Designed to deliver quick and easy measurements on site, making levelling tasks faster to complete. Features a unique design engineered to produce the highest quality levelling results. Built and manufactured to withstand the most rugged sites and harshest working conditions. Backed by the expert knowledge of Leica Geosystems, supported by a network of more than 270 service centres worldwide. Model: NA324. Standard Deviation For 1 Km Double Levelling (ISO17123-2): 2.0 mm. Telescope Image: upright. Magnification: 24x. Objective Aperture: 36 mm. Shortest Target Distance From Instrument Axis: less than 1.0 m. Field Of View At 100 M: less than 2.1 m. Multiplication Factor: 100. Additive Constant: 0. Compensator Working Range: +/- 15 arcmin. Compensator Setting Accuracy (Standard Deviation): less than 0.5 arcsec. Compensator Sensitivity: 8 arcmin per 2 mm. Horizontal Circle Graduation: 360 degrees. Horizontal Circle Graduation Interval: 1 degree. Weight (Net): 1.5 kg. Operating Temperature Range: -20 deg C to +40 deg C. Brand: Leica Geosystems.
Read full descriptionIn stock
Apple Pay, Google Pay, Link and PayPal, no account needed
Delivery to your door
Features
- Designed to deliver quick and easy measurements on site, making levelling tasks faster to complete.
- Features a unique design engineered to produce the highest quality levelling results.
- Built and manufactured to withstand the most rugged sites and harshest working conditions.
- Backed by the expert knowledge of Leica Geosystems, supported by a network of more than 270 service centres worldwide.
Specifications
- Model: NA324
- Standard Deviation For 1 Km Double Levelling (ISO17123-2): 2.0 mm
- Telescope Image: upright
- Magnification: 24x
- Objective Aperture: 36 mm
- Shortest Target Distance From Instrument Axis: less than 1.0 m
- Field Of View At 100 M: less than 2.1 m
- Multiplication Factor: 100
- Additive Constant: 0
- Compensator Working Range: +/- 15 arcmin
- Compensator Setting Accuracy (Standard Deviation): less than 0.5 arcsec
- Compensator Sensitivity: 8 arcmin per 2 mm
- Horizontal Circle Graduation: 360 degrees
- Horizontal Circle Graduation Interval: 1 degree
- Weight (Net): 1.5 kg
- Operating Temperature Range: -20 deg C to +40 deg C
- Brand: Leica Geosystems
- MPN
- LG840382
- Manufacturer
- Leica
