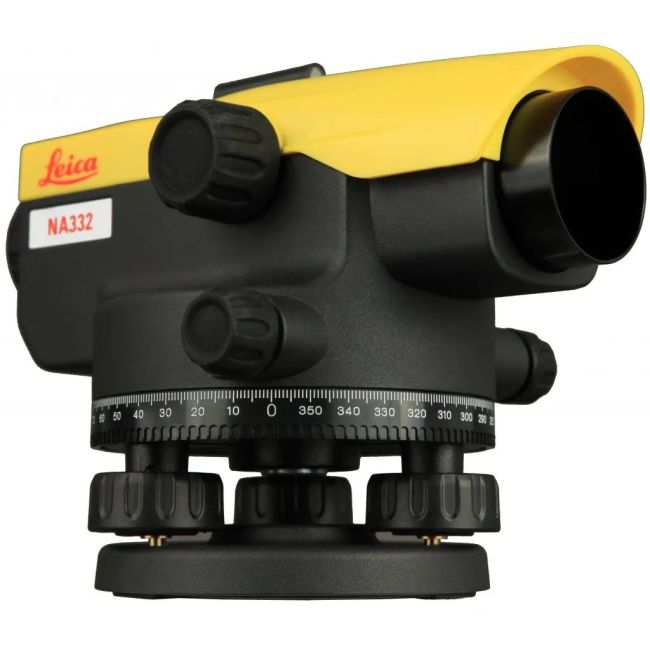

Leica NA332 32x Optical Magnification Automatic Level LG840383
or 4 interest-free payments of $115.50 with Afterpay or Zip
Model: NA332. Standard Deviation For 1 Km Double Levelling (ISO17123-2): 1.8 mm. Telescope Image: upright. Magnification: 32x. Objective Aperture: 36 mm. Shortest Target Distance From Instrument Axis: less than 1.0 m. Field Of View At 100 M: less than 2.1 m. Multiplication Factor: 100. Additive Constant: 0. Compensator Working Range: +/- 15 arcmin. Compensator Setting Accuracy (Standard Deviation): less than 0.5 arcsec. Compensator Sensitivity: 8 arcmin per 2 mm. Horizontal Circle Graduation: 360 degrees. Horizontal Circle Graduation Interval: 1 degree. Weight (Net): 1.5 kg. Operating Temperature Range: -20 deg C to +40 deg C. Brand: Leica Geosystems.
Read full descriptionIn stock
Apple Pay, Google Pay, Link and PayPal, no account needed
Delivery to your door
Specifications
- Model: NA332
- Standard Deviation For 1 Km Double Levelling (ISO17123-2): 1.8 mm
- Telescope Image: upright
- Magnification: 32x
- Objective Aperture: 36 mm
- Shortest Target Distance From Instrument Axis: less than 1.0 m
- Field Of View At 100 M: less than 2.1 m
- Multiplication Factor: 100
- Additive Constant: 0
- Compensator Working Range: +/- 15 arcmin
- Compensator Setting Accuracy (Standard Deviation): less than 0.5 arcsec
- Compensator Sensitivity: 8 arcmin per 2 mm
- Horizontal Circle Graduation: 360 degrees
- Horizontal Circle Graduation Interval: 1 degree
- Weight (Net): 1.5 kg
- Operating Temperature Range: -20 deg C to +40 deg C
- Brand: Leica Geosystems
- MPN
- LG840383
- Manufacturer
- Leica
