Features

• Self-centring, rubber-tipped feet and a robust cast-aluminium housing give the Piper high reliability for use in pipeline construction.
• For above-ground tasks, an optional scope and mount kit provide a user-friendly solution for simple setup and operation.
• A unique design and wide, stable base make the unit easy to set up even in the tightest manhole inverts.
• Fully waterproof to the IP X8 protection standard, with a positive pressure nitrogen seal that delivers ultimate reliability in wet or humid conditions.

Specifications

• Laser Beam Colour: Red
• Wave Length: 635nm
• Laser Class: 3R
• Max. Average Radiant Power: 4.75mW
• Working Range: Up to 200m
• Grade Range: -10% to +25%
• Self-Levelling Range: -15% to +30%
• Line Movement: 6m at 30m
• Battery: Li-Ion, up to 40 hours
• Charging Time: 4 hours
• Operating Temperature: -20 deg C to +50 deg C
• Dimensions: 96mm x 267mm
• Weight: 2.0kg
• Housing: Cast Aluminium
• Wireless Remote Distance: Front 150m, Back 10m
• Self-Levelling Accuracy: +/-1.5mm at 30m
• Auto Targeting: No
• Warranty: 5 years
• Brand: Leica Geosystems
• Model: LG748704

Includes

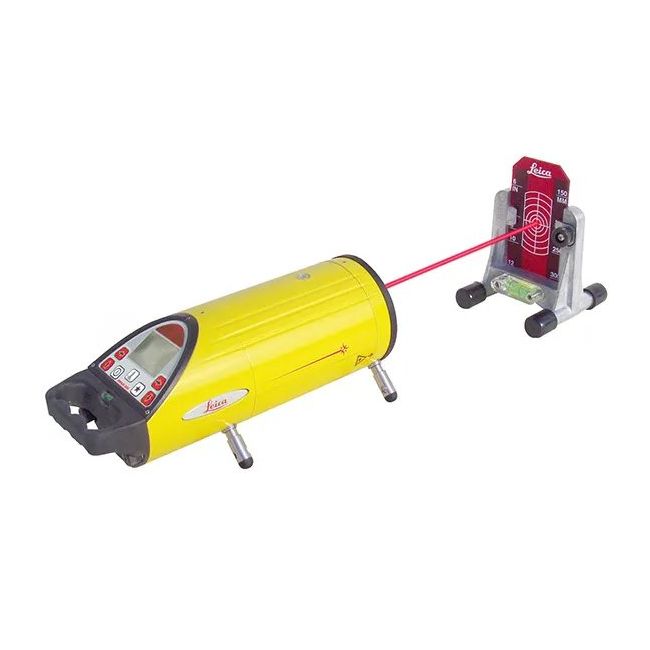

• Leica Piper 100 Red Beam pipe laser
• Rugged carrying case
• Remote control
• Target assembly
• GEB222 Li-ion rechargeable battery
• Battery charger with AC and 12V car adapter
• Self-centering feet set (150mm / 6")
